Ordering Examples
Part Number Description
PISO-30-L-7-1-1W-FB
High power polarization maintaining isolator, 1030nm, 900micron jacket, 0.75m fiber
length, FC/UPC connectors, 1W CW optical power, fast axis blocked
PISO-30-L-7-0-1W-FB
Polarization maintaining PM fibre coupled isolator, 1030nm, 900micron loose tube
jacket, PM 980nm panda fiber, 0.75m fiber length, without connector, 1W
CW power,  25dB min. isolation, slow axis working and fast axis is blocked
PISO-30-L-1-0-3W-FB
Polarization maintaining isolator, 1030nm, 900um loose tube jacket, PM 980 panda
fiber, 1m fiber length, without connector, 3W CW power, slow axis working
and fast  axis is blocked
PISO-30-L-7-1-5W-FB
PM panda fiber coupled isolator, 1030nm, 900micron loose tube jacket, PM 980nm
panda fibre, 0.75m fibre length, FC/UPC connector, 5W CW power, 25dB min.
isolation,  slow axis working and fast axis is blocked
PISO-64-L-7-0-1W-FB
High Power Polarization maintaining Isolator, 1064nm, 900micron loose tube
jacket, PM 980nm panda fibre, 0.75m fibre length, without connectors, 1W
CW power, slow axis working and fast axis is blocked
PISO-64-L-7-0-5W-FB
High Power PM isolator, 1064nm, 900micron loose tube jacket, PM 980nm
panda fiber, 0.75m fiber length, without connector, 5W CW power, slow
axis working and fast axis is blocked
PISO-98-L-7-2-1W-FB High power PM isolator, 980nm, 900micron loose tube jacket, PM 980 panda fiber,
0.75m fiber length, FC/APC connectors, 1W CW power, slow axis working and
fast axis is blocked
PISO-98-L-7-02-0.5W-FB Polarization maintaining high power Isolator 980nm, 900micron loose tube jacket,
PM 980 panda fibre, 0.75m fibre length, no connector input port and FC/APC
connector (narrow key R type) output port, 0.5W CW power, slow axis working
and fast axis is blocked
PISO-1-15-L-5-0-5W-BB PM isolator, single stage, 1550nm, 900micron loose tube jacket, P1550 panda fibre,
0.5m fiber length, no connectors, 5W CW power, slow axis and fast axis both
working
High Power Polarization Maintaining Isolator - 1030nm or 1064nm
Specifications
Parameters Values
Central wavelength 1030nm or 1064+/-10nm
Typ. peak isolation 30dB
Min. isolation at 23°C 25dB
Insertion loss at 23°C <1.4dB typ. 0.9dB
Extinction ratio >20dB
Return loss (input/output) >50/50dB
Axis Alignment Slow axis working and fast axis blocked
Max. optical power (CW) 1W, 3W or 5W
Fiber type  PM 980 Panda Fiber
Package dimensions  As per diagram
Max. tensile load 5N
Operation temperature 0°C  to +50°C
Storage temperature -20°C to +75°C
Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors.
Note2: The PM fiber and the connector key are aligned to the slow axis.
Note3: Specifications are subject to change without notice
Ordering Information
PISO-SS-V-W-X-Y-Z
SS: Centre wavelength 30 - 1030nm, 64 - 1064nm
V:  Pigtail type L - 900um loose tube jacket, C- 3mm loose tube jacket
W:  Pigtail length 7 - 0.75 m
X:  Connector  1 - FC/UPC, 2 - FC/APC, 0 - None
Y:  Optical power 1W - 1W, 3W - 3W, 5W - 5W CW power
Z:  Axis alignment FB - Fast axis blocked
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm).
If you require wide key connectors please specify this on your request/order.
Please note that the price will be higher for wide key connectors.


Package Dimensions

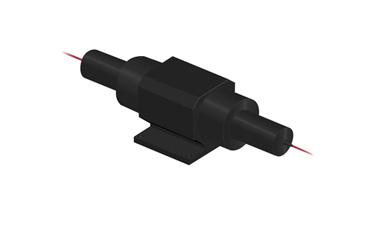

High Power Polarization Maintaining Isolator

1030nm or 1064nm (1W, 3W or 5W)
980nm (0.5W or 1W)
1310nm, 1480nm or 1550nm (1W, 3W, 5W or 10W)

High Power Polarization Maintaining Isolator - 980nm
Specifications
Parameters Values
Wavelength range 980 +/-10nm
Isolation at 23°C >25dB
Peak isolation 30dB
Insertion Loss at 23°C <1.3, typ:1.0dB
Return Loss (input/output) 50dB/50dB
Extinction ratio >22dB
Axis alignment slow axis working and fast axis is blocked
Max. Optical Power CW 0.5W, 1W
Max. Tensile Load 5N
Fiber Type PM 980 panda fiber
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to+75°C
Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors.
Note2: Specifications are subject to change without notice


Package Dimensions
Ordering Information
PISO-SS-V-W-X-Y-Z
SS: Centre wavelength 98 - 980nm
V:  Pigtail type L - 900um loose tube jacket, C- 3mm loose tube jacket
W:  Pigtail length 7 - 0.75 m
X:  Connector  1 - FC/UPC, 2 - FC/APC, 0 - None
Y:  Optical power 0.5W - 0.5W, 1W - 1W CW power
Z:  Axis alignment FB - Fast axis blocked
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm).
If you require wide key connectors please specify this on your request/order.
Please note that the price will be higher for wide key connectors.


High Power Polarization Maintaining Isolator - 1310nm, 1480nm or 1550nm
Specifications
Parameters Single Stage Double Stage
Wavelength range 1310nm, 1480nm or 1550 +/-20nm
Typ. peak Isolation 42dB 55dB
Isolation at 23°C >28dB >45dB
Insertion Loss at 23°C <0.4dB <0.5dB
Insertion Loss at 5°C-50°C <0.6dB <0.7dB
Min. return loss (input/output) 55dB 55dB
Extinction Ratio >22dB >22dB
Axis alignment Both axis working or fast axis blocked
Max. Optical Power (CW) 1W, 3W, 5W or 10W
Max. Tensile load 5N
Fiber Type Panda Fiber
Operating Temperature -5 to +70°C
Storage Temperature -40 to +85C
Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors.
Note2: Specifications are subject to change without notice


Ordering Information
PISO-R-SS-V-W-X-Y-Z
R:   Stage 1 - Single stage, 2 - Dual stage
SS: Centre wavelength 13 - 1310, 14 - 1480, 15 - 1550nm
V:  Pigtail type B - 250um bare fiber, L - 900um loose tube jacket, C- 3mm loose tube jacket
W:  Pigtail length 7 - 0.75 m
X:  Connector  0 - None
Y:  Optical power 1W - 1W, 3W - 3W, 5W - 5W, 10W - 10W
Z: Axis Alignment BB - Both axis working, FB - Fast axis blocked
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm).
If you require wide key connectors please specify this on your request/order.
Please note that the price will be higher for wide key connectors.


Package Dimensions -
Slow and fast axis both working - 6W~10W
Slow axis working and fast axis blocked 1W, 3W, 5W, 10W

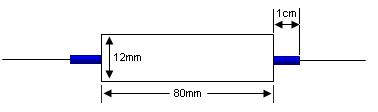

Package Dimensions -
Slow and fast axis both working - 1W, 3W or 5W PM Isolator
Package size: 80x12x10mm
