AFW Technologies
Fiber Optic and Micro Optics
Fiber Optic and Micro Optics
Optical Attenuators

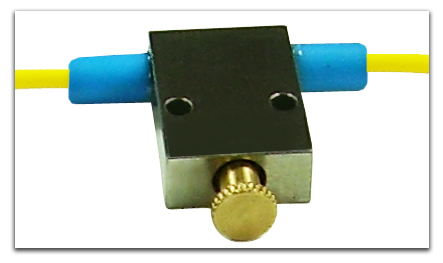

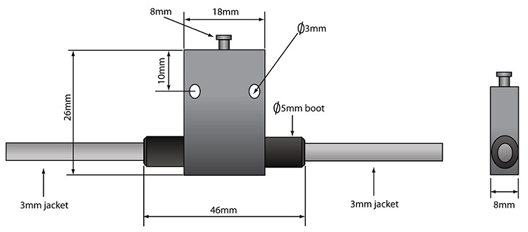

Fibre coupled variable attenuator (VOA)
The VOA is a fiber coupled device that is easy to work with any application. It features low insertion loss, a wide attenuation range, a small package and it is easy to operate. The attenuation range is from 0.8 to 30dB, and is continually adjustable. The attenuation can be adjusted continuously using a screw on the side of the attenuator frame. They are available in single wavelength and dual wavelength. Variable optical attenuators can be supplied with FC/UPC, FC/APC, SC/UPC, SC/APC or LC connector types.
- Operating wavelength range: 980nm or 1064nm or 1310/1550nm
- Fiber type: Hi1060 fiber or SMF28e fiber
- Attenuation range: 0.8~30dB variable range
- Fiber length each port: 1m
- Adjustment precision: 0.1dB
- Optical power: <300mw CW
- Operating temperature: 0 to 60c
- Back reflection(return loss): >45dB
Fibre coupled fixed attenuators (in-line)
Fibre coupled attenuators are available with SMF28e fiber or Hi1060 fiber and are jacketed with 900um loose tube or 3mm tubing. In-line attenuators can be supplied un-terminated or with FC/APC, SC/APC or E2000 connectors.
Other terminations are available.
- Operating wavelength range: 980nm or 1064nm or 1310 or 1550nm
- Fiber type: SMF28e or Hi1060
- Attenuation values: 5dB, 10dB, 15dB and 20dB or specify
Fibre coupled attenuators are available with SMF28e fiber or Hi1060 fiber and are jacketed with 900um loose tube or 3mm tubing. In-line attenuators can be supplied un-terminated or with FC/APC, SC/APC or E2000 connectors.
Other terminations are available.
- Operating wavelength range: 980nm or 1064nm or 1310 or 1550nm
- Fiber type: SMF28e or Hi1060
- Attenuation values: 5dB, 10dB, 15dB and 20dB or specify
Fixed adaptor type optical attenuators
Low cost 1310/1550nm fixed optical attenuators
are widely used in laboratory testing, optical
communication systems, CATV, LAN and test
and measurement.
- SC or FC plug type
- Attenuation values: 3, 5, 10, 15 and 20dB
- Low back reflection
Low cost 1310/1550nm fixed optical attenuators
are widely used in laboratory testing, optical
communication systems, CATV, LAN and test
and measurement.
- SC or FC plug type
- Attenuation values: 3, 5, 10, 15 and 20dB
- Low back reflection
| Ordering Information | |
| VOA-SM-W-X-Y-Z | |
| W: Wavelength | 64 - 1064nm, 1315 - 1310/1550nm |
| X: Jacket type | C - 3mm loose tube jacket |
| Y: Fiber length | 5 - 0.5m, 1 - 1m |
| Y: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Ordering Information | |
| OA-SM-V-W-X-Y-Z | |
| V: Wavelength | 98 - 980nm, 64 - 1064nm, 1310 - 1310 nm, 1550 - 1550nm |
| W: Attenuation | 5 - 5dB, 10 - 10dB, 15 - 15dB, 20 - 20dB |
| X: Jacket type | L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y: Fiber length | 5 - 0.5m, 1 - 1m |
| Y: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Ordering Examples | |
| Part Number | Description |
| VOA-SM-64-C-1-2 | SM pigtailed variable optical attenuator, 1064nm, 3mm cable jacket, Hi1060 fiber, 1m fiber length, FC/APC connector both ends, 1dB~30dB attenuation range |
| VOA-SM-64-C-0.5-1 | SM pigtailed variable optical attenuator, 1064nm, 3mm cable jacket, Hi1060 fiber, 0.5m fiber length, FC/UPC connector both ends, 1dB~30dB attenuation range |
| VOA-SM-64-C-1-3 | SM pigtailed variable optical attenuator, 1064nm, 3mm cable jacket, Hi1060 fiber, 1m fiber length, SC/UPC connector both ends, 1dB~30dB attenuation range |
| VOA-SM-1315-C-1-2 | Variable optical attenuator, Fibre coupled, 1310/1550nm, 3mm cable jacket, SMF28e fiber, 1m fiber length, FC/APC connector both ends |
| VOA-SM-1315-C-0.5-1 | Variable optical attenuator, Fibre coupled, 1310/1550nm, 3mm cable jacket, SMF28e fiber, 0.5m fiber length, FC/UPC connector both ends |
| Ordering Examples | |
| Part Number | Description |
| OA-SM-98-10-1-2 | SM fiber coupled optical attenuator, 980nm, Hi1060 fiber, 10dB, 900um loose tube jacket, 1m fiber length, FC/APC connectors |
| OA-SM-64-5-L-1-2 | SM fiber coupled optical attenuator, 1064nm, Hi1060 fiber, 5dB, 900um loose tube jacket, 1m fiber length, FC/APC connectors |
| OA-SM-1310-15-C-0.5-1 | SM fiber coupled optical attenuator, 1310nm, Hi1060 fiber, 15dB, 3mm cable jacket, 0.5m fiber length, FC/UPC connectors |
| OA-SM-1550-20-C-1-2 | SM fiber coupled optical attenuator, 1550nm, Hi1060 fiber, 20dB, 3mm cable jacket, 1m fiber length, FC/APC connectors |
| Ordering Examples | |
| Part Number | Description |
| FOA-FCA-1 | FC/APC male to female type fixed attenuator 1dB, single mode fiber |
| FOA-FCA-2 | FC/APC male to female type fixed attenuator 2dB, single mode fiber |
| FOA-FCA-3 | FC/APC male to female type fixed attenuator 3dB, single mode fiber |
| FOA-FCA-5 | FC/APC male to female type fixed attenuator 5dB, single mode fiber |
| FOA-FCU-1 | FC/PC male to female type fixed attenuator 1dB, single mode fiber |
| FOA-FCU-2 | FC/PC male to female type fixed attenuator 2dB, single mode fiber |
| FOA-FCU-3 | FC/PC male to female type fixed attenuator 3dB, single mode fiber |
| FOA-FCU-5 | FC/PC male to female type fixed attenuator 5dB, single mode fiber |
| FOA-LCU-5 | LC/PC male to female type fixed attenuator 5dB, singlemode fiber |
| FOA-LCU-10 | LC/PC male to female type fixed attenuator 10dB, singlemode fiber |
| FOA-LCU-15 | LC/PC male to female type fixed attenuator 15dB, singlemode fiber |
| FOA-SC-SC-ADA-5 | SC-SC adaptor type attenuator 5dB |
| FOA-SC-SC-ADA-10 | SC-SC adaptor type attenuator 10dB |
| FOA-SCA-1 | SC/APC male to female type fixed attenuator 1dB, single mode fiber |
| FOA-SCA-2 | SC/APC male to female type fixed attenuator 2dB, single mode fiber |
| FOA-SCA-3 | SC/APC male to female type fixed attenuator 3dB, single mode fiber |
| FOA-SCU-3 | SC/PC male to female type fixed attenuator 3dB, single mode fiber |
| FOA-SCU-15 | SC/PC male to female type fixed attenuator 15dB, single mode fiber |
| FOA-SCU-20 | SC/PC male to female type fixed attenuator 20dB, single mode fiber |
| Ordering Examples | |
| Part Number | Description |
| VOA-PM-1315-L-P-1-2-0.3W | PM pigtailed variable attenuator, 1310/1550nm, 900um loose tube jacket, PM panda fiber, 1m fiber length, FC/APC connector both ends, slow axis align to the key, 300mW CW total handling power |
| VOA-PM-1315-L-P-1.5-2-2W | PM pigtailed variable attenuator, 1310/1550nm, 900um loose tube jacket, PM panda fiber, 1.5m fiber length, FC/APC connector both ends, slow axis align to the key, 0.8~30dB attenuation, 1W CW total handling power with connector |
| VOA-PM-64-L-P-7-2 | PM fiber coupled variable optical attenuator, 1064nm, 900um loose tube jacket, PM 980 panda fiber, 0.75m fiber length, FC/APC connector, 300mw CW power handling, slow axis align to connector key, 0.6dB~30dB attenuation range |

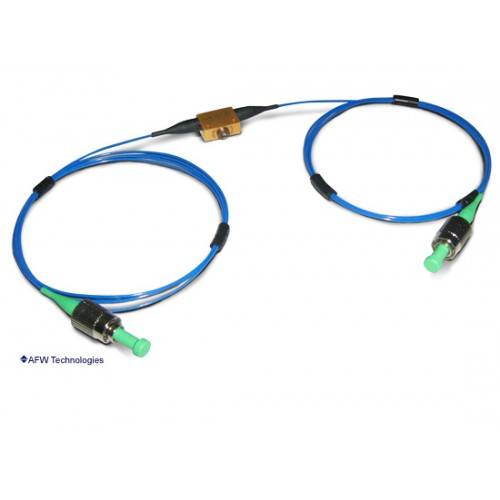

PM Fiber Coupled Variable Attenuators
| Ordering Information - 1310/1550nm | |
| VOA-PM-1315-V-W-X-Y-Z | |
| V: Jacket type | L - 900um loose tube jacket, C - 3mm loose tube jacket |
| W: Fiber type | P - PM Panda fiber |
| X: Fiber length | 5 - 0.5m, 1 - 1m, S - Specify |
| Y: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Z: Optical handling power | 0.3W - 300mW, 1W - 1W, 2W - 2W CW power |
| Ordering Information - 1064nm | |
| VOA-PM-64-W-X-Y-Z | |
| W: Jacket type | L - 900um loose tube jacket, C - 3mm loose tube jacket |
| X: Fiber type | P - PM980 Panda fiber |
| Y: Fiber length | 5 - 0.5m, 1 - 1m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Ordering Information | |
| FOA-YYY-Z | |
| YYY: Plug type | FCA - FC/APC, FCU - FC/PC, LCU- LC/PC, SCU - SC/UPC, SCA - SC/APC |
| Z: Attenuation | 1 - 1dB, 2 - 2dB, 3 - 3dB, 5 - 5dB, 10 - 10dB, 15 - 15dB, 20 - 20dB |
