Singlemode Tree Coupler Modules
Singlemode standard tree coupler module 1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. They offer very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Standard tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.

Singlemode Dual Window Tree Coupler Modules
Singlemode dual window tree coupler  1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. The SDTC offers very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Singlemode dual window tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.
Singlemode Standard Tree Coupler Module
Singlemode Dual Window Tree Coupler Module
Frequently asked questions
Singlemode Standard Tree Coupler Module 1X4 1X16 1X32 2X8 2X16 2X32
Specifications
Parameters Values
Configuration 1 or 2x4 1 or 2x8 1 or 2x16 1 or 2x32
Operating wavelength 1310nm or 1550nm
Bandwidth +/-20nm
Max. insertion loss 6.7dB 10.0dB 13.3dB 16.6dB
Max. PDL 0.2dB 0.3dB 0.4dB 0.5dB
Max. uniformity 0.8dB 1.2dB 1.8 dB 2.4dB
Directivity >=50dB
Grade p
Fiber type SMF28e
Package dimensions A: 100x80x10   (For 1,2X4 and 1,2X8 ABS module)
  C: 140x115x18  (For 1,2X16 and 1,2X32 ABS module)
Operating temperature -5°C to +70°C
Note1: Values specified are without connector loss.
Note2: Specifications are subject to change without notice
Ordering Information
SMTC-RRRR-SS-TT-U-X-Y-Z
RRRR : Port configuration 0104 - 1X4, 0108 - 1X8, 0116 - 1x16,
0132 - 1x32
0204 - 2X4, 0208 - 2X8, 0216 - 2X16,
0232 - 2X32
SS: Wavelength 13 - 1310nm, 15 - 1550nm
TT : Coupling ratio BA - Balance, 01 - 1% Tap/Balance, 05 - 5% Tap/Balance, SS - Specify
U :Package dimensions A or C
X : Pigtail  type L - 900um loose tube jacket, C - 3mm loose tube jacket
Y : Pigtail length 5 - 0.5m, 1 - 1m,  S - Specify
Z  : Connector  1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none

Singlemode Dual Window Tree Coupler Module SDTC- 1X4 1X8 1X16 1X32 2X16 2X32
Specifications
Parameters Values
Configuration 1 or 2x4 1 or 2x8 1 or 2x16 1 or 2x32
Operating wavelength 1310nm/1550nm
Bandwidth +/-20nm
Max. insertion loss 7.0dB 10.5dB 14.0dB 17.5dB
Max. PDL 0.3dB 0.45dB 0.6dB 0.8dB
Max. uniformity 1.6dB 2.4dB 3.2dB 4.0dB
Directivity 50dB
Fiber type SMF28e
Package dimensions A: 100x80x10   (For 1,2X4 and 1,2X8 ABS module)
  C: 140x115x18  (For 1,2X16 and 1,2X32 ABS module)
operating temperature -5°C to +70°C
Note1: Values specified are without connectors. With connectors, IL will be 0.3dB higher, RL will be 5dB lower.
Note2: Specifications are subject to change without notice
Ordering Information
SDTC-RRRR-SSSS-TT-U-X-Y-Z
RRRR : Port configuration 0104 - 1X4, 0108 - 1X8, 0116 - 1x16,
0132 - 1x32
0204 - 2X4, 0208 - 2X8, 0216 - 2X16,
0232 - 2X32
SS: Wavelength 1315 - 1310nm/1550nm
TT : Coupling ratio BA - Balance, 01 - 1% Tap/Balance, 05 - 5% Tap/Balance, SS - Specify
U :Package dimensions A or C
X : Pigtail  type L - 900um loose tube jacket, C - 3mm loose tube jacket
Y : Pigtail length 5 - 0.5m, 1 - 1m,  S - Specify
Z  : Connector  1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none

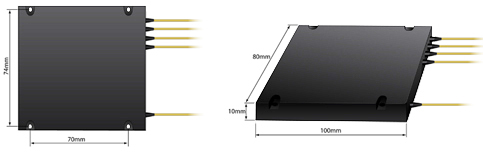

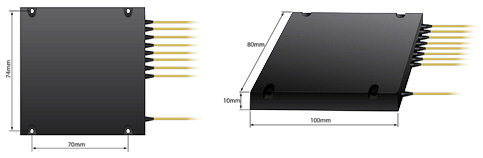

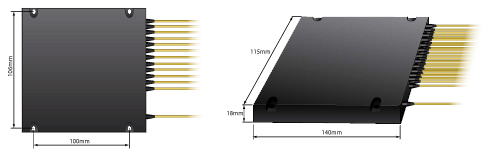

Package Dimensions


A: 100x80x10mm  (1X4 splitter module)
A: 100x80x10mm  (1X8 splitter module)
C: 140x115x18mm  (1X16 splitter module)
C: 140x115x18mm  (1X32 splitter module)



Package Dimensions
A: 100x80x10mm  (1X4 splitter module)
A: 100x80x10mm  (1X8 splitter module)
C: 140x115x18mm  (1X16 splitter module)
C: 140x115x18mm  (1X32 splitter module)

Ordering Examples
Frequently Asked Questions

Q1. We are looking for splitter racks for our equipment cabinet, can you supply them?
Q1. We are looking for splitter racks for our equipment cabinet, can you supply them?
A. Yes, please refer to the following sample pictures for 1x8, 1x16 and 1x32 splitters. For Multimode there can only be 1x4 or 1x8. For singlemode fiber, we recommend having SC/APC connectors for input and output ports.
