Ordering Examples
Part Number Description
ISO-30-L-1-0-3W High power polarization insensitive isolator, 1030nm, 900um loose tube jacket, Hi1060
fibre, 1m fibre length, no connector, 3W CW power, large package
ISO-30-C-1-1-1W High power polarization insensitive isolator, 1030nm, 3mm cable jacket, Hi1060 fibre,
1m fibre length, FC/UPC connectors, 1W CW power, large package
ISO-30-L-1-0-5W High power polarization insensitive isolator, 1030nm, 900micron loose tube jacket,
Hi1060 fiber, 1m fiber length, no connector, 5W CW power, large package
ISO-30-L-1-0-1W High power polarization insensitive isolator, 1030nm, 900micron loose tube jacket,
Hi1060 fibre, 1m fibre length, without connectors, 1W CW power, large package, Max
IL: 1.2dB, Min isolation: 25dB
ISO-64-L-7-0-1W High power polarization insensitive isolator, 1064nm, 900um loose tube jacket, Hi1060
fibre, 0.75m fibre length, without connector, 1W CW power
ISO-64-L-1-0-3W High power polarization insensitive isolator,  1064nm, 900micron loose tube jacket, 1m
fiber length, without connector, 3W CW power
ISO-64-L-1-0-5W High power polarization insensitive isolator, 1064nm, 900um loose tube jacket, 1m
fiber length, without connectors, 5W CW power
ISO-64-L-1-2-1W High power polarization insensitive isolator, 1064nm, 900um loose tube jacket, Hi1060
fibre, 1m fibre length, FC/APC connectors, 1W CW power
ISO-64-C-1-1-1W High power polarization insensitive isolator, 1064nm, 3mm cable jacket, Hi1060 fibre,
1m fibre length, FC/UPC connectors, 1W CW power, large package
ISO-98-L-1-0-1W High power polarization insensitive isolator, 980nm, 900um loose tube jacket, Hi1060
fiber, 1m fiber length, without connectors, 1W CW power, large package
ISO-98-L-1-0-5W High power polarization insensitive isolator, 980nm, 900um loose tube jacket, Hi1060
fiber, 1m fiber length, without connectors, 5W CW power, large package
High Power isolator - 1030nm or 1064nm
Specifications
Parameters Values
Central wavelength 1030nm or 1064+/-10nm
Typ. peak isolation 30dB
Min. isolation at 23°C 25dB
Insertion loss at 23°C <1.2dB, typ: 0.8
Return loss (input/output) 50/50dB
Max. optical power (CW) 1W, 3W or 5W
Max PDL  0.15dB
Max. tensile load 5N
Fiber type Hi 1060 Fiber
Package dimensions  As per diagram
Operation temperature 0°C to +50°C
Storage temperature -20°C to +75°C
Note1: Values specified are without connectors. With connectors optical power will be 2W lower.
Note2: The PM fiber and the connector key are aligned to the slow axis.
Note3: Specifications are subject to change without notice
Ordering Information
ISO-SS-V-W-X-Y
SS: Centre wavelength 30 - 1030nm, 64 - 1064nm
V:  Pigtail type L - 900um loose tube jacket , C - 3mm loose tube jacket
W:  Pigtail length 1 - 1 m
X: Connector type 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify
Y:  Optical handling power 1W - 1W, 3W - 3W, 5W - 5W CW power

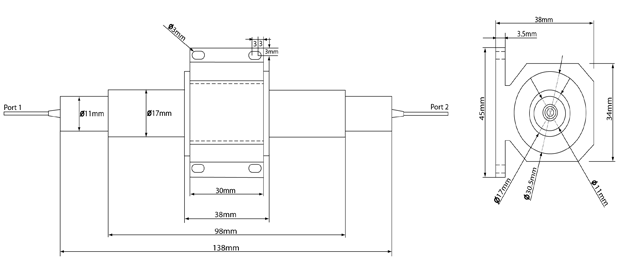

Package Dimensions

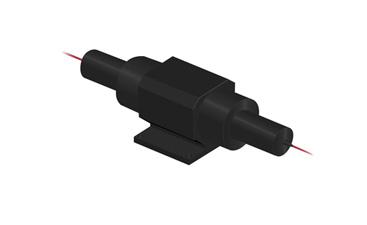

High Power Polarization Insensitive Isolator



Ordering Examples
1310nm, 1480nm or 1550nm (1W, 3W, 5W or 10W)
980nm (0.5W or 1W)
1030nm or 1064nm (1W, 3W or 5W)

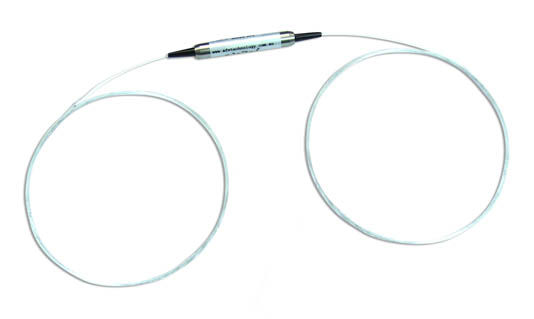

High power polarization insensitive optical Isolator - 1310nm, 1480nm or 1550nm
Specifications
Parameters Single Stage Double Stage
Center Wavelength 1310nm, 1480nm or 1550nm
Operating wavelength range +/-20 +/-20
Insertion Loss at 23°C <0.55dB, typ. 0.4 <0.6dB, typ. 0.5
Typ peak isolation 40dB 55dB
Isolation at 23°C >28dB >45dB
Return Loss (Input/Output) >55/55dB >55/55dB
PDL at 23°C <0.05 <0.05
PMD <0.2dB <0.05dB
Optical Power (CW) 1W, 3W, 5W or 10W
Max. Tensile load 5N
Fiber Type SMF28e fiber
Operating Temperature -5 to +70°C
Storage Temperature -40 to +85°C
Note1: Values referenced without connector loss.
Note2: For pulse power let us know your power condition.
Note3: With connector the maximum power handling will be 1W.
Note4: Specifications are subject to change without notice

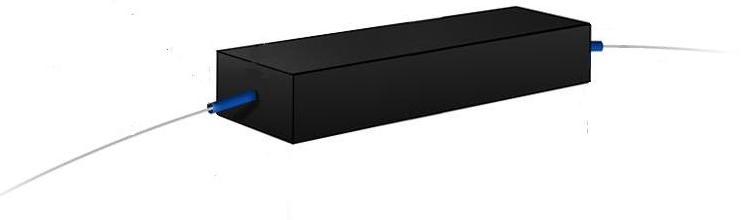

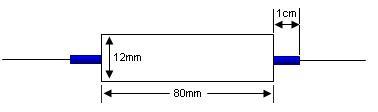

Package Dimensions - 10W Isolator
Ordering Information
ISO-R-SS-V-W-X-Y
R: Stage 1 - Single stage, 2 - Dual stage
SS: Centre wavelength 13 - 1310nm, 14 -  1480nm, 15 - 1550nm
V:  Pigtail type B- 250um bare fiber, L - 900 um loose tube jacket, C- 3mm loose tube jacket
W:  Pigtail length 1 - 1 m
X: Connector type 1 -FC/UPC, 2 -FC/APC, 0 - None, S - Specify
Y:  Optical handling power 1W - 1W, 3W - 3W, 5W - 5W, 10W - 10W CW power

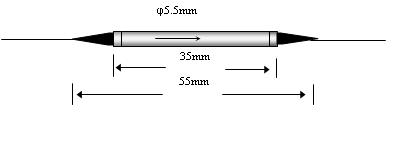

Package Dimensions - 1W, 3W or 5W Isolator
High Power Polarization Insensitive Isolator - 980nm
Specifications
Parameters Values
Wavelength range 980 +/-10nm
Isolation at 23°C >25dB
Peak isolation 30dB
Insertion Loss at 23°C <1.2, typ:1.0dB
Return Loss (input/output) 50dB/50dB
PDL <0.1dB
Max. Optical Power CW 0.5W, 1W
Max. Tensile Load 5N
Fiber Type Hi1060
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to+75°C
Note1: Values referenced without connector loss.
Note2: Specifications are subject to change without notice


Ordering Information
ISO-SS-W-X-Y-Z
SS: Centre wavelength 98 - 980nm
W:  Pigtail type L - 900um loose tube jacket , C - 3mm loose tube jacket
X:  Pigtail length 7 - 0.75 m
Y:  Connector  1 - FC/UPC, 2 - FC/APC, 0 - None
Z:  Optical power 0.5W - 0.5W, 1W - 1W CW power

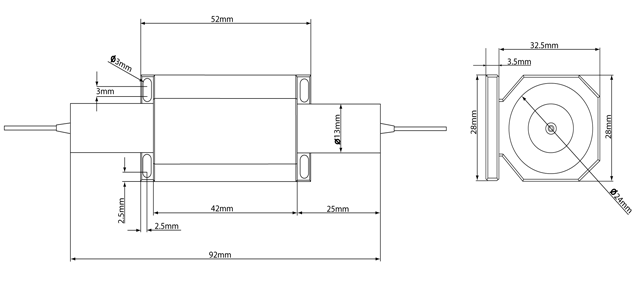

Package Dimensions
850nm (0.5W, 1W, 2W)
High Power Polarization Insensitive Isolator - 850nm
Specifications
Parameters Values
Wavelength range 850 +/-10nm
Isolation at 23°C >25dB
Peak isolation 30dB
Insertion Loss at 23°C <1.2, typ:1.0dB
Return Loss (input/output) 50dB/50dB
PDL <0.1dB
Max. Optical Power CW 0.5W, 1W, 2W
Max. Tensile Load 5N
Fiber Type Hi780
Operating Temperature 0°C to +50°C
Storage Temperature -20°C to+75°C
Note1: Values referenced without connector loss.
Note2: Specifications and measurements are subject to change without notice


Ordering Information
ISO-SS-W-X-Y-Z
SS: Centre wavelength 85 - 850nm
W:  Pigtail type L - 900um loose tube jacket , C - 3mm loose tube jacket
X:  Pigtail length 7 - 0.75 m
Y:  Connector  1 - FC/UPC, 2 - FC/APC, 0 - None
Z:  Optical power 0.5W - 0.5W, 1W - 1W, 2W - 2W
Package Dimensions
