| Ordering Examples | |
| Part Number | Description |
| ISOS-13-B-1-0 |
Polarization insensitive isolator, single stage, 1310nm, SMF28e fibre, 250um bare fiber, 1m fibre length, without connectors |
| ISOS-13-C-1-1 |
Polarization insensitive isolator, single stage, 1310nm, SMF28e singlemode fibre, 3mm cable jacket, 1m fibre length, FC/UPC connector all ports |
| ISOS-14-L-1-2 |
Polarization insensitive isolator, single stage, 1480nm, 900micron jacket, SMF28e fiber, 1m fiber length, FC/APC connectors |
| ISOS-15-B-1-0 |
Polarization insensitive isolator, 1550nm, single stage, 250um bare fiber, SMF28e fiber, 1m fiber length, without connectors, 0.3W CW power |
| ISOS-15-C-1-1 |
Polarization insensitive isolator,single stage,1550nm, SMF28e singlemode fibre, 3mm cable jacket, 1m fibre length, FC/UPC connector all ports |
| ISOS-15-L-1-2 |
Polarization insensitive isolator, single stage, 1550nm +/-20nm, 900um loose tube jacket, SMF28e fiber, 1m fiber length, FC/APC connectors |
| ISOS-64-B-1-0 |
Polarization insensitive isolator, single stage, 1064nm, Hi1060 fibre, 250um bare fiber, 1m fibre length, without connectors |
| ISOS-64-L-1-6 |
Polarization insensitive isolator, 1064nm, single stage, 900um loose tube jacket, Hi1060 fiber, 1m fiber length, LC/UPC connectors, 300mw CW power |
| ISOD-13-B-1-0 |
Polarization insensitive isolator, dual stage, 1310nm, SMF28e single mode fibre, 250um bare fiber, 1m fibre length, without connectors |
| ISOD-13-C-2-2 |
Polarization insensitive isolator, 1310nm, 3mm loose tube jacket, SMF28e fiber, 2m fiber length, FC/APC connectors |
| ISOD-14-L-1-4 |
Polarization insensitive isolator, 1480nm, 900micron loose tube jacket, SMF28e singlemode fiber, 1m fiber length, SC/APC connectors |
| ISOD-15-L-1-21 |
Polarization insensitive isolator, dual stage, 1550nm, SMF28e fiber, 900um loose tube jacket, 1m fibre length, FC/APC connector at input port, FC/UPC at output port |
| ISOD-15-C-2-3 |
Polarization insensitive isolator, 1550nm, 3mm loose tube jacket, SMF28e fibre, 2m fibre length, SC/UPC connectors |
| ISOD-64-B-1-0 |
Polarization insensitive isolator, dual stage, 1064nm, Hi1060 fibre, 250um bare fiber, 1m fibre length, without connectors |
| ISOD-64-L-1-2 |
Polarization insensitive dual stage isolator, 1064nm, 900um loose tube jacket, Hi1060 fibre, 1m fiber length, FC/APC connectors |
| PITI-2-15-01-B-1-0 |
Polarization Insensitive Tap Isolator, dual stage, 1550nm, 1/99 coupling ratio, 250um bare fiber, 1.0m fiber length, no connectors |
| PITI-2-15-10-L-1-2 |
PI Tap Isolator, dual stage, 1550nm, 10/90 coupling ratio, 900micron loose tube jacket, 1m fiber length, FC/APC connectors |
| 1064 nm Fiber Optic Isolator | ||
| Specifications | ||
| Parameters | Single Stage | Dual Stage |
| Central wavelength | 1064nm | |
| Insertion loss at -5 to 50°C;lc | 2.1dB, typ. 1.6dB | <3.4dB typ. 2.5dB |
| Typ. peak isolation | 40dB | 55dB |
| Min. isolation at 23°C;lcą10nm | 28dB | 44dB |
| Return loss (input/output) | >55/50dB | |
| Max PDL at 23°C | 0.15dB | |
| Max. optical power (CW) | 300mW | |
| Max. tensile load | 5N | |
| Fiber length | 1m | |
| Fiber type | Hi 1060 Fiber | |
| Operation temperature | -5 to +50°C | |
| Storage temperature | -40 to +85°C | |
| Package dimension | dia5.5mm x 35mm or dia5.5mm x 55mm with boots | |
| Note1: Values specified are without connector loss. | ||
| Note2: Specifications are subject to change without notice | ||
Package Dimensions
Fiber Optic Isolator
The fiber optic isolator is a two port micro-optic device built with Hi1060 fiber or SMF28e fiber. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction. The Polarization Insensitive Isolator features low insertion loss, high isolation and excellent environmental stability and reliability. It is ideal for suppressing back reflection in fiber lasers and other high performance laser based fiber optics systems.
The polarization insensitive isolators are designed and manufactured to Telcordial standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. Polarization insensitive isolators have been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipment to suppress back reflection and back scattering.
The fiber optic isolator is a two port micro-optic device built with Hi1060 fiber or SMF28e fiber. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction. The Polarization Insensitive Isolator features low insertion loss, high isolation and excellent environmental stability and reliability. It is ideal for suppressing back reflection in fiber lasers and other high performance laser based fiber optics systems.
The polarization insensitive isolators are designed and manufactured to Telcordial standard. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. Polarization insensitive isolators have been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipment to suppress back reflection and back scattering.
| 1310nm/1480nm/1550nm Fiber Optic Isolator | ||
| Specifications | ||
| Parameters | Single Stage | Dual Stage |
| Central wavelength, CWL | 1310nm, 1480nm or 1550nm | |
| Typ. peak isolation | 42dB | 58dB |
| Min. isolation at 23°C; CWLą15nm | 32dB | 46dB |
| Insertion loss at -5-70°C;CWLą20nm | <0.5dB | <0.55dB |
| Return loss (input/output) | >55/55dB | >55/55dB |
| Max PDL | 0.05dB | 0.05dB |
| Max PMD | 0.2dB | 0.05dB |
| Max. optical power | 300mw | |
| Max. tensile load | 5N | |
| Fiber type | SMF28e | |
| Operation temperature | -5 to +50°C | -5 to +70°C |
| Storage temperature | -40 to +85°C | |
| Note1: Values specified are without connectors. | ||
| Note2: Specifications are subject to change without notice | ||
Package Dimensions
| Ordering Information | |
| ISOS-SS-X-Y-Z - for Single Stage Isolator | |
| ISOD-SS-X-Y-Z - for Dual Stage Isolator | |
| SS : Wavelength | 13 - 1310nm, 14 - 1480nm, 15 - 1550nm |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y: Pigtail length | 1 - 1.0 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Polarization Insensitive Tap Isolator | ||
| Specifications | ||
| Parameters | Single Stage | Dual Stage |
| Center wavelength | 1310nm or 1550nm | |
| Signal tap ratio (input to tap) | 1%, 5%, 10%, 20% and 50% | |
| Typ. peak isolation | 25dB | 45dB |
| Min. isolation at 23°C | 18dB | 35dB |
| Max excess loss | 1.0dB | 1.2dB |
| Max. PDL at 23°C (1 to 3 and 1 to 2) | 0.1dB | 0.15dB |
| Max PMD (1 to 3) | 0.25dB | 0.1dB |
| Min directory (3 to 2) | 55dB | |
| Min. return loss (input/output) | 50dB | |
| Max. optical power | 300mW | |
| Max. tensile load | 5N | |
| Fiber length | 1m | |
| Fiber type | SMF28e | |
| Operation temperature | -5 to +70 degree-C | |
| Storage temperature | -40 to +85 degree-C | |
| Note1: Values specified are without connector loss. | ||
| Note2: Specifications are subject to change without notice | ||

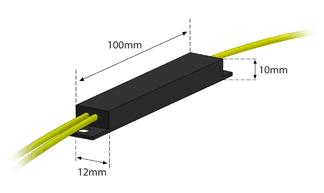

Package Dimensions
| Ordering Information | |
| PITI-R-SS-TT-X-Y-Z | |
| R: Stage | 1 - Single Stage, 2 - Dual Stage |
| SS: Wavelength | 13 - 1310nm, 15 - 1550nm |
| TT: Tap ratio | 01 - 1/99, 05 - 05/95, 10 - 10/90, 20 - 20/80, 50 - 50/50 |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y : Pigtail length | 1 - 1.0 m, S - Specify |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
| Ordering Information | |
| ISOS-SS-X-Y-Z - for Single Stage Isolator | |
| ISOD-SS-X-Y-Z - for Dual Stage Isolator | |
| SS : Wavelength | 64 - 1064nm |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y: Pigtail length | 1 - 1.0 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
