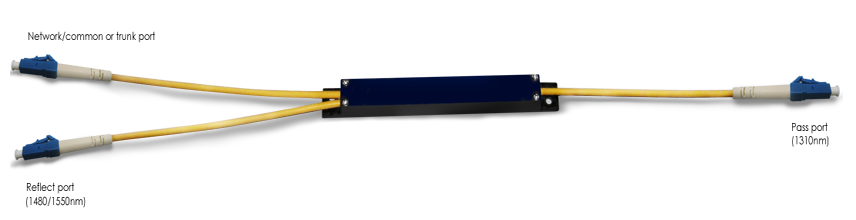

Filter Wavelength Division Multiplexer
The Filter Wavelength Division Multiplexer is extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation. The FWDM series is based on environmentally stable Thin Film Filters technology. The device combines or separates light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating.
C Band/L Band Wavelength Division Multiplexer
The C Band/L band filter wavelength division multiplexer is a micro optics device based on environmentally stable Thin Film Filters technology. It is used to combine or separate C band wavelength signals and L band wavelength signals in DWDM systems. The components are characterized with wide pass band, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
The Filter Wavelength Division Multiplexer is extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation. The FWDM series is based on environmentally stable Thin Film Filters technology. The device combines or separates light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating.
C Band/L Band Wavelength Division Multiplexer
The C Band/L band filter wavelength division multiplexer is a micro optics device based on environmentally stable Thin Film Filters technology. It is used to combine or separate C band wavelength signals and L band wavelength signals in DWDM systems. The components are characterized with wide pass band, low insertion loss, high return loss, excellent environmental stability and high power handling capability.
| Ordering Examples | |
| Part Number | Description |
| FWDM-SM-1315-L-1-0 |
Filter type singlemode WDM,1310nm pass/1550nm reflect, 900um loose tube jacket, SMF28e fibre, 1m fibre length, without connectors |
| FWDM-SM-1315-L-1-4 |
Filter type singlemode WDM,1310nm pass/1550nm reflect, 900um loose tube jacket, SMF28e fibre, 1m fibre length, SC/APC connector |
| FWDM-SM-1598-B-1-0 |
Filter SMWDM,1550/980nm, singlemode, 250um bare fiber, Hi1060 and SMF28e fiber, 1m fiber length, without connectors |
| FWDM-SM-1598-L-1-6 |
Filter SM WDM 1550/980nm, 900um loose tube jacket, SMF28e fiber on 1550nm and common ports, Hi1060 on 980nm port, 1m fiber length, LC/UPC connectors |
| FWDM-SM-1598-L-1-1 |
Filter SM WDM 1550/980nm, 900um loose tube jacket, SMF28e fibre on 1550nm and common ports, Hi1060 on 980nm port, 1m Pigtail length, FC/UPC connector all ports |
| FWDM-SM-1598-L-1-2 |
Filter SM WDM 1550/980nm, 900um loose tube jacket, SMF28e fibre on 1550nm and common ports, Hi1060 on 980nm port, 1m Pigtail length, FC/APC connector all ports |
| FWDM-SM-1598-L-1-4 |
Filter WDM 1550/980nm, 900um loose tube jacket, SMF28e fiber on 1550nm and common ports, Hi1060 fiber on 980nm port, 1m fiber length, SC/APC connectors all ports |
| FWDM-SM-9764-C-1-2 |
Filter WDM, singlemode, 976nm/1064nm, 3mm cable jacket, 1m fiber length, FC/APC connectors |
| FWDM-SM-9764-L-1-0-1W |
Filter WDM, 976/1064nm, 900um loose tube jacket, Hi1060 fibre, 1m fibre length, without connector, 1W CW power |
| FWDM-SM-9764-L-1-211 |
Filter WDM, 976nm pass/1064nm reflect, 900um loose tube jacket, Hi1060 fibre all ports, 1m fibre length, FC/APC connector on 980nm port, FC/UPC connector on common port and 1060 port |

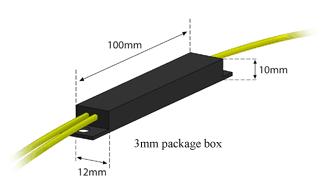

Package Dimensions
| Filter Wavelength Division Multiplexer - 1550/1310nm, 1550/1480nm, 1550/1510 | |||||||
| Specifications | |||||||
| Parameters | Unit | Values | |||||
|
Pass band wavelength range (pass -> common) |
nm | 1530-1600 | 1530-1580 | 1500 - 1520 | |||
|
IL over pass band wavelength (pass -> common) |
dB | Max. 0.6, Typ. 0.4 | Max. 0.6, Typ. 0.4 | Max. 0.7, Typ. 0.5 | |||
| Pass band isolation | dB | Min. 30, Typ. 35 | Min. 25, Typ. 30 | Min. 30, Typ. 35 | |||
| Reflection band wavelength range | nm | 1270-1350 | 1450-1490 | 1530 - 1570 | |||
| IL over reflection band wavelength | dB | Max. 0.5, Typ. 0.3 | |||||
| Typ. isolation @23C | dB | 15 | |||||
| Min. isolation @23C | dB | 12 | |||||
| Optical return loss | dB | >50 | |||||
| Max.PDL | dB | 0.1 | |||||
| Typ. PDL | dB | 0.05 | |||||
| Thermal stability | dB/°C | <0.005 | |||||
| Max. optical power | mW | 300 | |||||
| Max. tensile load | N | 5 | |||||
| Fiber type | SMF28e | ||||||
| Operation temperature | °C | -5 to +70 | |||||
| Storage temperature | °C | -40 to +85 | |||||
| Note1: Values specified are without connector loss. | |||||||
| Note2: Specifications are subject to change without notice. | |||||||
| Filter Wavelength Division Multiplexer - 980nm/1550nm | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
|
Pass band wavelength range (pass -> common) |
1500-1600nm | |||||
|
IL over pass band wavelength (pass -> common) |
Max. 0.7dB, Typ. 0.5dB | |||||
| Pass band isolation | Min. 30dB, Typ. 35dB | |||||
| Reflection band wavelength range | 950-1010nm | |||||
| IL over reflection band wavelength | Max. 0.7dB, Typ. 0.5dB | |||||
| Typ. isolation @23C | 15dB | |||||
| Min. isolation @23C | 12dB | |||||
| Min. return loss | 50dB | |||||
| Max.PDL | 0.1dB | |||||
| Typ. PDL | 0.05dB | |||||
| Thermal stability | <0.005dB/°C | |||||
| Fiber type |
SMF28e fiber on 1550nm port and common port, Hi1060 on 980nm port |
|||||
| Max. optical power | 300mW | |||||
| Max. tensile load | 5N | |||||
| Operation temperature | -5°C to +70°C | |||||
| Storage temperature | -40°C to +85°C | |||||
| Note1: Values specified are without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
| Ordering Information | ||
| FWDM-SM-SSSS-X-Y-Z | ||
| SSSS - Wavelength | 1598 - 1550nm Pass/980nm Reflect | |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| Filter Wavelength Division Multiplexer 980nm/1064nm | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
| Pass wavelength range 980nm | 980 ± 10nm | |||||
| IL over pass wavelength (Input1->output) | < 0.7dB | |||||
| Pass band Isolation @ reflection band wavelength | > 25dB | |||||
| Reflection wavelength range 1064nm | 1064 ± 10nm | |||||
| IL over reflection band (Input2 -> Output) | < 0.6dB | |||||
| Reflection band isolation @ pass band wavelength | > 12dB | |||||
| Optical return loss | > 50dB | |||||
| Fiber type | HI 1060 fiber | |||||
| Max. optical total power (CW) | 1000mW | |||||
| Max. tensile load | 5N | |||||
| Operation temperature | -5°C to +70°C | |||||
| Storage temperature | -40°C to +85°C | |||||
| Note1: Values specified are without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
| Ordering Information | ||
| FWDM-SM-SSSS-X-Y-Z | ||
| SSSS - Wavelength | 9864 - 980nm Pass/1064nm Reflect | |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
Package Dimensions
| Ordering Information | ||
| FWDM-SM-SSSS-X-Y-Z | ||
| SSSS - Wavelength |
1513 - 1550 Pass/1310 Reflect 1514 - 1550 Pass/1480 Reflect 1551 - 1550 Pass/1510 Reflect |
|
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
Package Dimensions
| C Band/L Band Wavelength Division Multiplexer | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
| Pass Band Wavelength range | 1530-1561nm (1571-1605nm) | |||||
| Max. insertion loss | 0.7dB | |||||
| Typ. insertion loss | 0.5dB | |||||
| Min. isolation | 22dB | |||||
| Typ. isolation | 25dB | |||||
| Reflection Band Wavelength range | 1571 - 1605nm (1530-1561nm) | |||||
| Typ. insertion loss | 0.3dB | |||||
| Max. insertion loss | 0.5dB | |||||
| Typ. isolation | 15dB | |||||
| Min. isolation | 12dB | |||||
| Min. return loss | 50dB | |||||
| Max.PDL | 0.1dB | |||||
| Typ. PDL | 0.05dB | |||||
| Thermal stability | <0.005dB/°C | |||||
| Fiber type | SMF28e | |||||
| Max. optical power | 300mW | |||||
| Max. tensile load | 5N | |||||
| Operation temperature | -5°C to +70°C | |||||
| Storage temperature | -40°C to +85°C | |||||
| Note1: Values specified are without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
Package Dimensions
| Ordering Information | ||
| WDMCL-SSSS-X-Y-Z | ||
| SSSS - Wavelength |
6171 - 1530-1561 Pass / 1571-1605 Reflect, |
7161 - 1530-1561 Reflect / 1571-1605 Pass |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| C Band Red/Blue Wavelength Division Multiplexer | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
| Pass Band Wavelength range | 1530-1542nm (1548-1560nm) | |||||
| Max. insertion loss | 0.8dB | |||||
| Typ. insertion loss | 0.6dB | |||||
| Min. isolation | 20dB | |||||
| Typ. isolation | 25dB | |||||
| Reflection band wavelength range | 1548 - 1560nm (1530-1542nm) | |||||
| Typ. insertion loss | 0.5dB | |||||
| Max. insertion loss | 0.6dB | |||||
| Typ. isolation | 12.0dB | |||||
| Min. isolation | 10.0dB | |||||
| Min. return loss | 50dB | |||||
| Max.PDL | 0.1dB | |||||
| Typ. PDL | 0.05dB | |||||
| Thermal stability | <0.005dB/°C | |||||
| Fiber type | SMF28e | |||||
| Max. optical power | 300mW | |||||
| Max. tensile load | 5N | |||||
| Operation temperature | -5°C to +70°C | |||||
| Storage temperature | -40°C to +85°C | |||||
| Note1: Values specified are without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
Package Dimensions
| Ordering Information | ||
| WDMRB-SSSS-X-Y-Z | ||
| SSSS - Wavelength |
4248 - 1530-1542 Pass / 1548-1560 Reflect 4842 - 1548-1560 Pass / 1530-1542 Reflect |
|
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| Filter WDM 1310/1550 & 1625nm | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
|
Pass band wavelength range (pass -> common) |
1310nm +/-20 & 1550nm +/-20 | |||||
|
IL over pass band wavelength (pass -> common) |
Max. 1.0dB, Typ 0.7dB | |||||
| Pass band isolation | >25dB | |||||
| Reflection band wavelength range | 1625 +/-10nm | |||||
| IL over reflection band wavelength | < 0.6dB | |||||
| Reflection band isolation @23C | Min.12dB typ: 15dB | |||||
| PDL | <0.1dB | |||||
| Directivity | >50dB | |||||
| Optical return loss | >50dB | |||||
| Power handling (Max) (CW power) | 500mW | |||||
| Operating temperature range | -5°C to +70°C | |||||
| Storage temperature range | -40°C to +85°C | |||||
| Tensile load | 5N | |||||
| Fiber type | SMF28e | |||||
| Fiber length | 1m | |||||
| Note1: Values referenced without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
Package Dimensions
| Ordering Information | ||
| FWDM-SM-SSSS-X-Y-Z | ||
| SSSS - Wavelength | 131516 - 1310nm +/-20 & 1550nm +/-20 Pass / 1625 +/-10nm Reflect | |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| Filter WDM 1310/1470~1530nm | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
|
Pass band wavelength range (pass -> common) |
1270nm~1340nm | |||||
|
IL over pass band wavelength (pass -> common) |
<0.7dB | |||||
| Pass band isolation | >25dB | |||||
| Reflection band wavelength range | 1470nm~1530nm | |||||
|
IL over reflection band wavelength (reflect ->common) |
< 0.6dB | |||||
| Reflection band isolation @23C | <12dB typ: 15dB | |||||
| PDL | <0.1dB | |||||
| Directivity | >50dB | |||||
| Optical return loss | >50dB | |||||
| Power handling (Max) (CW power) | 300mW | |||||
| Operating temperature range | -5°C to +70°C | |||||
| Storage temperature range | -40°C to +85°C | |||||
| Tensile load | 5N | |||||
| Fiber type | SMF28e | |||||
| Fiber length | 1m | |||||
| Note1: Values referenced without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
Package Dimensions
| Ordering Information | ||
| FWDM-SM-SSSS-X-Y-Z | ||
| SSSS - Wavelength | 1314 - 1270nm~1340nm Pass / 1470nm~1530nm Reflect | |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1m, S - Specify | |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| High isolation filter WDM 1310/1550nm | ||||||
| Specifications | ||||||
| Parameters | Values | |||||
|
Pass band wavelength range (pass -> common) |
1550 +/-20nm | |||||
|
IL over pass band wavelength (pass -> common) |
<1.0dB | |||||
| Pass band isolation @1310nm | >40dB | |||||
| Reflection band wavelength range | 1310nm+/-20nm | |||||
|
IL over reflection band wavelength (reflect ->common) |
<1.0dB | |||||
| Reflection band isolation @1550nm | >40dB | |||||
| Max. PDL | <0.2dB | |||||
| Optical return loss | >50dB | |||||
| Power handling (Max) (CW power) | 300mW | |||||
| Operating temperature range | -5°C to +70°C | |||||
| Storage temperature range | -40°C to +85°C | |||||
| Tensile load | 5N | |||||
| Fiber type | SMF28e | |||||
| Fiber length | 1m | |||||
| Note1: Values referenced without connector loss. | ||||||
| Note2: Specifications are subject to change without notice | ||||||
Package Dimensions
| Ordering Information | ||
| FWDM-SM-SSSS-W-X-Y-Z | ||
| SSSS - Wavelength | 1513 - 1550nm Pass / 1310nm Reflect | |
| W: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| X: Pigtail length | 1 - 1m, S - Specify | |
| Y: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| Z: FWDM Isolation | 40 - 40dB isolation each channel | |
Q. Can you supply a wavelength splitter or Y cable to split 1310nm and 150nm?
A. Yes, we can supply a Y cable which is the same as a filter type WDM which can split or combine 1310nm (1270~1350nm) and 1480/1550nm (1480~1600nm). The WDM splitter is a bi-directional device that can be supplied with SC, LC or FC connector types on any port.
A. Yes, we can supply a Y cable which is the same as a filter type WDM which can split or combine 1310nm (1270~1350nm) and 1480/1550nm (1480~1600nm). The WDM splitter is a bi-directional device that can be supplied with SC, LC or FC connector types on any port.
Frequently Asked Questions
