Polarization Maintaining Optical Circulator
The PM optical circulator is a 3 port fiber optic device built with PM panda fiber. It transmits a signal from port1 to port 2 and another signal from port 2 to port 3 while maintaining the polarization. The PM Circulator features low insertion loss, high isolation between ports, low PDL, high extinction ratio and high reliability and stability. The device can be built with 250um bare fiber, 900um jacket or a 3mm cable jacket.
The PM optical circulator is a 3 port fiber optic device built with PM panda fiber. It transmits a signal from port1 to port 2 and another signal from port 2 to port 3 while maintaining the polarization. The PM Circulator features low insertion loss, high isolation between ports, low PDL, high extinction ratio and high reliability and stability. The device can be built with 250um bare fiber, 900um jacket or a 3mm cable jacket.

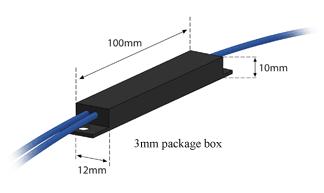

Package Dimensions
| Ordering Examples | |
| Part Number | Description |
| CIR-PM-64-B-5-1 |
3 port polarization maintaining circulator, 1064nm, 250um bare fiber, PM panda fiber, 0.5m fiber length, FC/UPC connector all ports, slow axis of fiber align to connector key |
| CIR-PM-15-L-7-2 |
3 port polarization maintaining circulator, 1550nm, 900micron jacket, PM panda fiber, 0.75m fiber length, FC/APC connectors, slow axis of fiber align to connector key |
| CIR-PM-13-C-2-1 |
3 port polarization maintaining circulator, 1310nm, 3mm cable jacket, PM panda fibre, 2m fibre length, FC/UPC connector all ports, slow axis of fibre align to connector key |
| CIR-PM-3-30-L-7-0-IL-0.3W |
3 port PM circulator, 1030nm, 900micron cable diameter, PM 980nm panda fiber, 0.75m fiber length, without connector, low IL version, 0.3W CW power |
| CIR-PM-30-B-7-0-0.1W |
3 port PM circulator, 1030nm, 250um bare fibre, PM 980nm panda fibre, 0.75m fibre length, without connector, 100mw CW power |
| CIR-PM-64-B-1-0 |
3 port PM circulator,1064nm 1064 +/-5nm, 250um bare fiber PM 980nm panda fiber, 1m fiber length, without connector, 300mw CW |
| CIR-PM-64-L-7-2 |
3 port PM circulator, 1064nm +/-5nm, PM980nm panda fiber, 900um loose tube jacket, 1m fiber length, FC/APC connectors, 300mw CW |
| CIR-PM-15-C-7-2 |
3 port PM circulator,1550nm, 3mm cable jacket, panda fibre all ports, 0.75m fibre length, FC/APC connector all ports, slow axis align to connector key, slow axis working and fast axis blocked |
| CIR-PM-15-L-1-1 |
3 port PM circulator, 1550nm, 900um loose tube jacket, panda fibre all ports, 1m fibre length, FC/UPC connector all ports, slow axis align to connector key, slow axis working and fast axis blocked |
| CIR-PM-13-L-2-1 |
3 port polarization maintaining circulator, 1310nm, 250um bare fiber with 900micron loose tube jacket, PM panda fiber, 2m fiber length, FC/UPC connector all ports, slow axis of fiber align to connector key, slow axis working and fast axis blocked |
| CIR-PM-13-L-5-2 |
3 port polarization maintaining circulator, 1310nm, 900micron loose tube jacket, PM panda fiber, 0.5m fiber length, FC/APC connector all ports, slow axis of fiber align to connector key, slow axis working and fast axis blocked |
| CIR-PM-3-30-L-5-2-IL-0.3W |
3 port PM circulator, 1030nm, 900um loose tube jacket, PM 980nm panda fiber, 0.5m fibre length, FC/APC connector, low IL version, 0.3W CW power, large package, slow axis working and fast axis blocked |
| CIR-PM-3-30-L-7-0-IL-0.3W |
3 port PM circulator, 1030nm, 900um loose tube jacket, PM 980nm panda fibre, 0.75m fibre length, without connector, low IL version, 0.3W CW power, large package, slow axis working and fast axis blocked |
| CIR-PM-30-B-1-0-0.05W-FB |
PM circulator 3 port, 1030nm, PM980 panda fibre with 250um bare fibre, 1m fiber length, without connector, slow axis working and fast axis is blocked, 50mw CW power handling |
| Polarization Maintaining Optical Circulator - 1064nm | |
| Specifications | |
| Parameters | Values |
| Center wavelength | 1064 +/-5nm |
| Insertion loss | <2.2dB |
| Extinction ratio | >20dB |
| Typical isolation | 30dB |
| Min. isolation @23C | 23dB |
| Mini. cross talk | 50dB |
| Minimum return loss | >50dB |
| Fiber type | PM 980 panda fiber |
| Max. optical power (CW),total | 300mW |
| Max. tensile load | 5N |
| Operating temperature | -5 to +50°C |
| Storage temperature | -40 to +85°C |
| Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors. | |
| Note2: The PM fiber and the connector key are aligned to the slow axis, fast axis is blocked. | |
| Note3: Specifications are subject to change without notice | |
| PM Optical Circulator - 1310nm/1550nm | |
| Specifications | |
| Parameters | Values |
| Center wavelength | 1310± 30nm or 1550± 30nm |
| Insertion loss | <0.9dB |
| Peak isolation | 50dB |
| Typical isolation | 46dB |
| Min. isolation @23C | 38dB |
| Minimum extinction ratio | >22dB |
| Mini. cross talk | 50dB |
| Minimum return loss | >55dB |
| Max. optical power (CW),total | 300mW |
| Max. tensile load | 5N |
| Fiber type | Panda fibre on all ports |
| Operation temperature | -5 to +70°C |
| Storage temperature | -40 to +85 °C |
| Note1:The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked. | |
| Note2: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors. | |
| Note3: Specifications are subject to change without notice | |
| Ordering Information | |
| CIR-PM-SS-X-Y-Z | |
| SS: Wavelength | 15 -1550 nm, 13- 1310 nm, S - Specify |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm cable, S - Specify |
| Y: Pigtail length | 5 - 0.5m, 7 -0.75 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
| Ordering Information | |
| CIR-PM-SS-X-Y-Z | |
| SS: Wavelength | 64 - 1064nm, S - Specify |
| X: Pigtail type | B - 250um barefiber, L - 900 um loose tube jacket, C - 3mm cable, S - Specify |
| Y: Pigtail length | 5 - 0.5m, 7 -0.75 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|

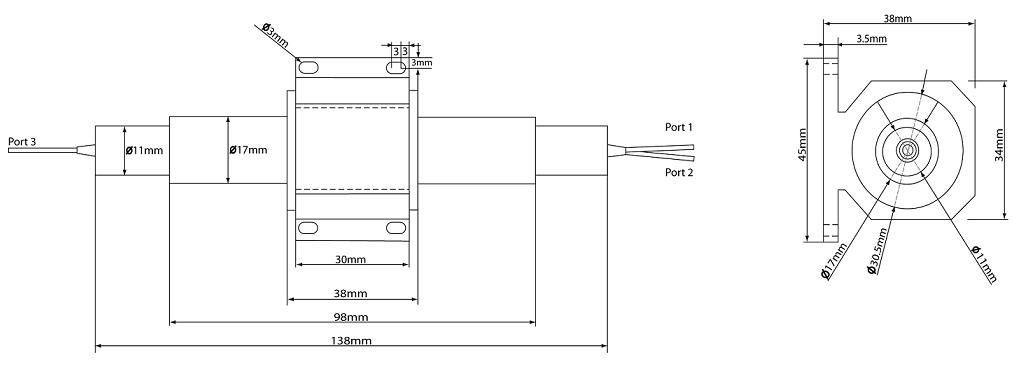

Package Dimensions
| 3 port PM optical circulator Low IL type - 1030nm | |
| Specifications | |
| Parameters | Values |
| Center wavelength | 1030nm |
| Wavelength range | +/-10nm |
| Signal direction | P1->P2 and P2->P3 |
| Insertion loss at 23C (port1 to port2, port2 to port3) | <1.6dB, typ: 1.2dB |
| Min. isolation (port2 to port1, port3 to port2) @23C | 22dB |
| Typ. peak isolation (port2 to port1, port3 to port2) | 25dB |
| Extinction ratio at 23C | >20dB |
| Cross talk | >50dB |
| Return loss | >50dB |
| Fiber Type | PM 980nm Panda fiber |
| Max. optical power(CW),total | 300mW |
| Max. tensile load | 5N |
| Operation temperature | 0 to +50C |
| Storage temperature | -20 to +75C |
| Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors. | |
| Note2: The PM fiber and the connector key are aligned to the slow axis, fast axis is blocked | |
| Note3: Specifications are subject to change without notice | |

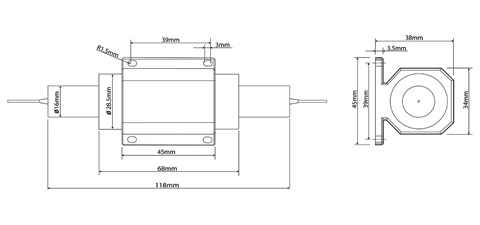

Package Dimensions
| Ordering Information | |
| CIR-PM-3-SS-X-Y-Z-IL-0.3W | |
| SS: Wavelength | 30 - 1030nm, S - Specify |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm cable, S - Specify |
| Y: Pigtail length | 5 - 0.5m, 7 -0.75 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
| 3 port PM optical circulator - 1030nm | |
| Specifications | |
| Parameters | Values |
| Center wavelength | 1030nm |
| Wavelength range | +/-5nm |
| Signal direction | P1->P2 and P2->P3 |
| Insertion loss at 23C (port1 to port2, port2 to port3) | <4.0dB, typ: 3.5dB |
| Min. isolation (port2 to port1, port3 to port2) @23C | 22dB |
| Extinction ratio at 23C | >20dB |
| Cross talk | >50dB |
| Return loss | >50dB |
| Fiber type | PM 980nm Panda fiber |
| Max. optical power(CW),total | 50mw |
| Max. tensile load | 5N |
| Operation temperature | 0 to +60C |
| Storage temperature | -20 to +75C |
| Note1: Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors. | |
| Note2: The PM fiber and the connector key are aligned to the slow axis, fast axis is blocked | |
| Note3: Specifications are subject to change without notice | |
Package Dimensions
| Ordering Information | |
| CIR-PM-SS-X-Y-Z | |
| SS: Wavelength | 30 - 1030nm, S - Specify |
| X: Pigtail type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm cable, S - Specify |
| Y: Pigtail length | 5 - 0.5m, 7 -0.75 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
