AFW Technologies
Fiber Optic and Micro Optics
Fiber Optic and Micro Optics
| Ordering Examples | |
| Part Number | Description |
| FOP-64-L-0.5-H64-22 |
Fiber optic patchcord, 1064nm, 900micron cable jacket, 0.5m fiber length, Hi1060 fiber, FC/APC both ends |
| FOP-98-B-2-H98-22 |
Fiber optic patchcord, 980nm, 250um bare fiber (with 3cm long loose tube connector end), 2m fiber length, Hi980 fiber, FC/APC both ends |
| FOP-64-C-1-H64-11 |
Fiber optic patchcord, 1064nm, 3mm cable jacket, 1m fiber length, Hi1060 fiber, FC/UPC connector both ends |
| FOP-15-L-1-S-11 |
Fiber optic patchcord, 1550nm, 900micron jacket, 1m length, SMF28e fiber, FC/UPC connectors |
| FOP-13-B-1-S-0 |
Fiber optic patchcord, 1310nm, 250um bare fiber, 1m length, SMF28e fiber, without connectors connectors |
| FOP-98-L-1-H98-22 |
Fiber optic patchcord, 980nm, 900micron jacket, 1m length, Hi980 fiber, FC/APC connectors |
| FOP-15-L-2-5.4/80-20 |
Pigtail monomode 1550nm, 900um loose tube, 2m length, Fibercore SM1250(5.4/80) 80um clad fiber, FC/APC connector end 1 and no connector end 2 |
| FOP-15-L-1-9/80-10 |
Pigtail monomode 1550nm, 900um loose tube, 1m length, Fibercore SM1250(9/80) 80um clad fiber, FC/UPC connector end 1 and no connector end 2 |
| SFOP-15-L-0.05-22 |
Singlemode patchcord, 1550nm, 900micron tight buffered jacket, yellow colour, SMF28e fiber, 5cm +/-3mm length, FC/APC connectors |

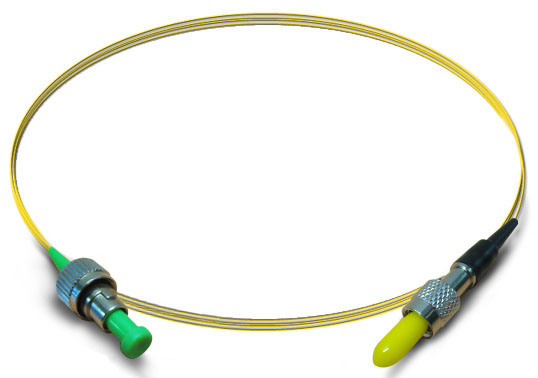

Singlemode Patchcords
Singlemode patchcords or jumper leads, can be terminated with FC, SC, LC, ST or SMA connectors. AFW patch cords have excellent environmental stability, high return loss and low insertion loss. Various cable types are available, including 250um bare fiber(unjacketed), 900micron buffered fiber and 3mm cable jacket. Yellow color PVC material with Kevlar strength members inside will be used for 3mm cables. 900micron cables can be supplied in various colors such as yellow, green, red, black or blue. Since Corning Hi1060 or Hi980 fibre is used to build patchcords, the operating wavelength ranges from 980nm ~ 1064nm. When ordering patch cords please specify the wavelength and the required fibre type.
Click for Polarization maintaining (PM panda fiber) patchcord or jumper leads.
Mating Adaptors
AFW can supply mating adaptors (or through adaptors, bulkhead) to interconnect two patchcords. Usually we stock square flange, panel mount or D-type adaptors for a wide range of applications. FC/UPC female to FC/APC male adaptors are also available to minimise the requirement of a male to female patchcord. These adaptors give the flexibility to have an APC output from a UPC ferrule end face. AFW can also supply FC type bare fiber adaptors for quick connection.
Singlemode patchcords or jumper leads, can be terminated with FC, SC, LC, ST or SMA connectors. AFW patch cords have excellent environmental stability, high return loss and low insertion loss. Various cable types are available, including 250um bare fiber(unjacketed), 900micron buffered fiber and 3mm cable jacket. Yellow color PVC material with Kevlar strength members inside will be used for 3mm cables. 900micron cables can be supplied in various colors such as yellow, green, red, black or blue. Since Corning Hi1060 or Hi980 fibre is used to build patchcords, the operating wavelength ranges from 980nm ~ 1064nm. When ordering patch cords please specify the wavelength and the required fibre type.
Click for Polarization maintaining (PM panda fiber) patchcord or jumper leads.
Mating Adaptors
AFW can supply mating adaptors (or through adaptors, bulkhead) to interconnect two patchcords. Usually we stock square flange, panel mount or D-type adaptors for a wide range of applications. FC/UPC female to FC/APC male adaptors are also available to minimise the requirement of a male to female patchcord. These adaptors give the flexibility to have an APC output from a UPC ferrule end face. AFW can also supply FC type bare fiber adaptors for quick connection.
| Fiber Optic Patch cords 980/1064/1310/1480/1550nm | ||
| Specifications | ||
| Parameters | Values | |
| Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC, SMA | |
| Wavelength | 980nm,1064nm | 1310nm, 1480nm, 1550nm |
| Max. insertion loss | <0.7dB | <0.4dB, 06dB (SMA) |
| Min return loss | >50dB (for UPC), >60dB (for APC) | >50dB (for UPC), >60dB (for APC) |
| Fiber type | Corning Hi980 fiber or Hi1060 fiber | SMF28e fiber |
| Max. optical power | 300mW | |
| Fiber length tolerance | +/-5cm | |
| Operation temperature | -5°C to +70°C | |
| Storage temperature | -40°C to +85°C | |
|
Note1: Specifications shown are only for patchcord lengths up to 3 meters Specifications are subject to change without notice |
||
| Ordering Information | |
| FOP-SS-W-X-Y-Z | |
| SS: Wavelength | 64 - 1064nm, 98 - 980nm, 15- 1550 nm, 13 - 1310 nm, S - Specify |
| W : Buffer Type |
B - 250um bare fiber (with 3cm long 900micron loose tube at each connector end), LB - 900micron loose tube, T - 900micron tight buffered (only for 1310/1550nm) C - 3mm loose tube Cable |
| X : Pigtail length | 0.5 - 0.5m, 0.75 - 0.75m, 1 - 1.0 m, S - Specify |
| Y: Pigtail type | S - SMF28e, H64 - HI 1060, H98 - Hi980, S - Specify |
| Z: Connector type |
1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 5 - ST/UPC, 6 - LC/UPC, 7 - LC/APC, SMA - SMA, 8 - E2000/PC, S - Specify |
| Adaptors / Mating Sleeves | ||
| ADA-PM-22-R-S | PM FC through adaptor, 2.03mm key way (R type), square flange, zirconia sleeves for PM patchcords | |
| ADA-PM-22-R-D | PM FC through adaptor, 2.03mm key way (R type), round D type panel mount, zirconia sleeves for PM patchcords | |
| ADA-PM-22-N-S | PM FC through adaptor, 2.10~1.14mm key way (N type), square flange, zirconia sleeves for PM patchcords | |
| ADA-FC-FC-S | FC type through adaptors, square flange, zirconia sleeves, for singlemode patchcords | |
| ADA-FC-FC-D | FC type through adaptors, round D type, panel mount, zirconia sleeves, for singlemode patchcords | |
| ADA-SC-SC-1 | SC-SC through adaptor, simplex | |

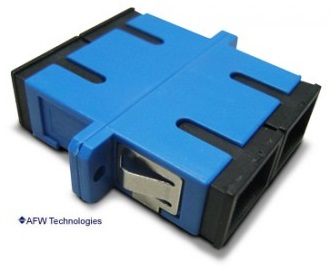

| ADA-SC-SC-2 | SC-SC through adaptor (mating sleeves), duplex | |
| ADA-SCA-SCA-1 | SC/APC-SC/APC through adaptor (mating sleeves) simplex | |

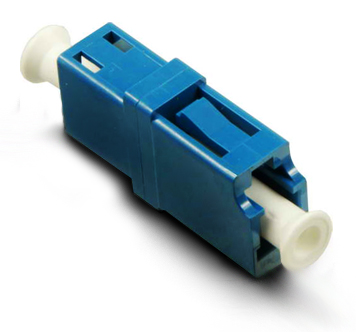

| ADA-LC-LC-S | LC-LC through adaptor, simplex | |

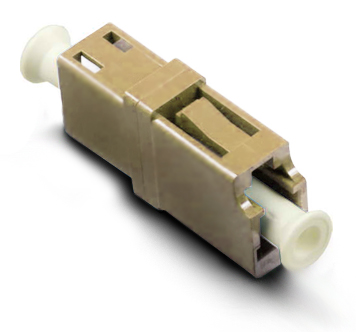

| ADA-LC-LC-S-M | LC-LC through adaptor, simplex, beige colour | |
| ADA-LC-LC-D | LC-LC through adaptor (mating sleeve), duplex | |

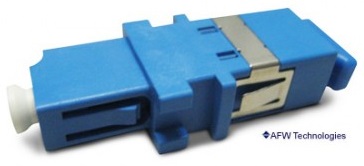

| ADA-SC-LC | SC-LC through adaptor (mating sleeves) | |
| ADA-FC-ST-M | FC-ST type through adaptors (mating sleeve), metal frame | |
| ADA-ST-ST-S | ST-ST through adaptor, simplex | |

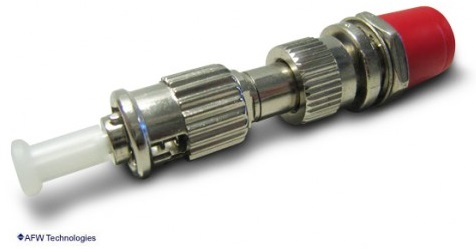

| ADA-ST-FCU | ST(male) to FC/UPC(female) adaptor (mating sleeve),singlemode | |
| ADA-SMA-SMA | SMA-SMA through adaptor | |

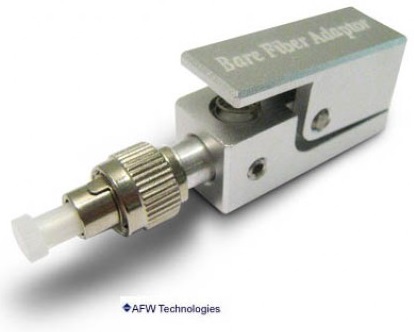

| ADA-FC-BARE | FC type bare fiber adaptor, 126um ferrule bore | |

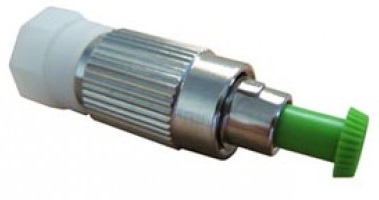

| ADA-FCU-FCA | FC/UPC female to FC/APC male inline adaptor for UPC-APC conversion | |
| ADA-FC-SC-M | FC-SC type through adaptors (mating sleeve), metal frame | |

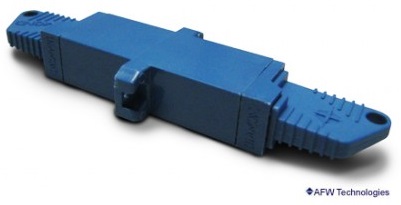

| ADA-E2000-E2000-S | E2000-E2000 through adaptor (mating sleeves), simplex | |
| Reduced Cladding (RC) Fiber Patch Cords - 80um Cladding | ||
| Specifications | ||
| Parameters | Values | |
| Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC | |
| Wavelength | 1310nm, 1550nm | |
| Max. insertion loss | <0.9dB | |
| Min return loss | >50dB (for UPC), >55dB (for APC) | |
| Fiber type | SM1250(9/80) or SM1250(5.4/80) | |
| Max. optical power | 300mW | |
| Fiber length tolerance | +/-5cm | |
| Operation temperature | -5°C to +70°C | |
| Storage temperature | -40°C to +85°C | |
| Note1: Specifications are subject to change without notice | ||
| Ordering Information | |
| FOP-SS-W-X-Y-Z | |
| SS: Wavelength | 15 - 1550 nm, 13 - 1310 nm, S - Specify |
| W : Buffer Type |
B - 250um bare fiber (with 3cm long loose tube connector end), L - 0.9mm buffer, C - 3mm Cable |
| X : Pigtail length | 0.5 - 0.5m, 0.75 - 0.75m, 1 - 1.0 m, S - Specify |
| Y: Pigtail type | 5.4/80 - SM1250(5.4/80), 9/80 - SM1250(9/80) , S - Specify |
| Z: Connector type | 1 - FC/UPC, 2 - FC/APC, S - Specify |
| Ordering Examples | |
| Part Number | Description |

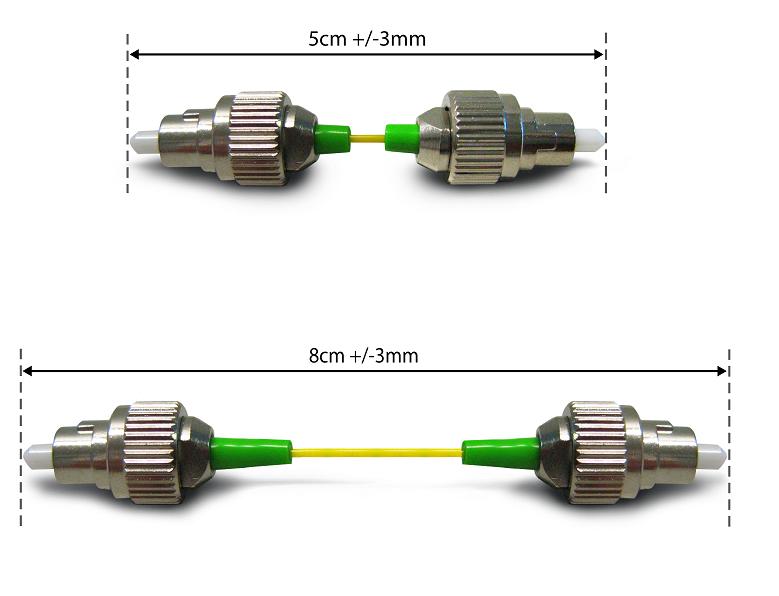

| SFOP-15-L-0.05-22 |
Singlemode patchcord, 1550nm, 900micron tight buffered jacket, yellow colour, SMF28e fiber, 5cm +/-3mm length, FC/APC connectors |
| SFOP-15-L-0.08-11 |
Singlemode patchcord, 1550nm, 900micron tight buffered jacket, yellow colour, SMF28e fiber, 8cm +/-3mm length, FC/UPC connectors |
| SFOP-15-L-0.11-22 |
Singlemode patchcord, 1550nm, 900micron tight buffered jacket, yellow colour, SMF28e fiber, 11cm +/-3mm length, FC/APC connectors |

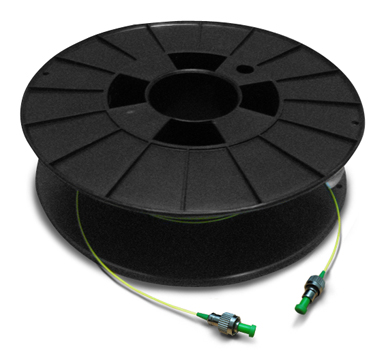

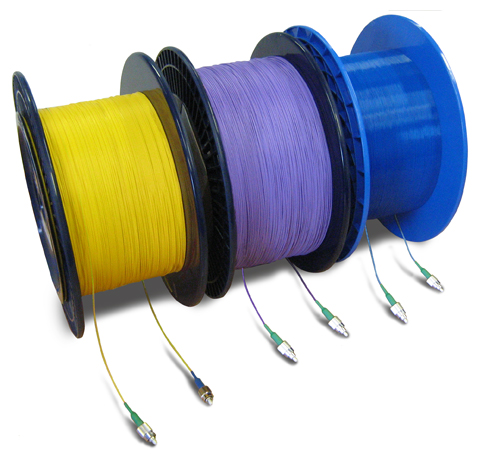

Fibre Spools for Laboratory Testing
980/1064nm, 1310nm, 1480nm, 1550nm
980/1064nm, 1310nm, 1480nm, 1550nm
| Ordering Examples | |
| Part Number | Description |
| SM1-15-11-1LB-20-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 20m long, 250um bare fiber, FC/UPC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-1CB-100-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 100m long, 250um bare fiber, FC/APC connector both ends, 1m long 3mm loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-1LB-200-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 200m long, 250um bare fiber, FC/APC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-1CB-300-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 300m long, 250um bare fiber, FC/APC connector both ends, 1m long 3mm loose tube jacket at each connector end, supplied in a spool |
| SM1-15-11-1CB-400-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 400m long, 250um bare fiber, FC/UPC connector both ends, 1m long 3mm loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-1LB-500-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 500m long, 250um bare fiber, FC/APC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-LB-1KM-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 1km long, 250um bare fiber, FC/APC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-LB-5KM-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 5km long, 250um bare fiber, FC/APC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| SM1-15-22-LB-10KM-SPL |
Singlemode fiber spool G.652, 1310/1550nm, 10km long, 250um bare fiber, FC/APC connector both ends, 1m long 900micron loose tube jacket at each connector end, supplied in a spool |
| FOP-64-B-500-H64-22 |
Fiber optic patchcord, singlemode, 1064nm, 250um bare fiber, 500m fiber length, Hi1060 fiber, FC/APC connectors, supplied in a spool, 1m long 900um loose tube at each connector end |
| FOP-64-B-200-H64-11 |
Fiber optic patchcord, singlemode, 1064nm, 250um bare fiber, 200m fiber length, Hi1060 fiber, FC/UPC connectors, supplied in a spool, 1m long 900um loose tube at each connector end |
Special Wavelength Patch cords
460nm, 630nm, 780nm and 830nm
460nm, 630nm, 780nm and 830nm
| Fiber Optic Patch cords - 460nm, 630nm, 780nm and 830nm | ||
| Specifications | ||
| Parameters | Values | |
| Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC, SMA | |
| Wavelength | 460nm, 630nm | 780nm, 830nm |
| Max. insertion loss | <1.5dB | <0.9dB |
| Min return loss | >50dB (for UPC), >55dB (for APC) | >50dB (for UPC), >55dB (for APC) |
| Fiber type | SM450, SM600 | Hi780, SM800 |
| Max. optical power | 300mW | |
| Fiber length tolerance | +/-5cm | |
| Operation temperature | -5°C to +70°C | |
| Storage temperature | -40°C to +85°C | |
|
Note1: Specifications shown are only for patchcord lengths up to 3 meters Specifications are subject to change without notice |
||
| Ordering Information | |
| FOP-SSS-W-X-Y-Z | |
| SSS: Wavelength | 460 - 460nm, 630 - 630nm, 780 - 780nm, 830 - 830nm |
| W : Buffer Type |
B - 250um bare fiber (with 3cm long 900micron loose tube at each connector end), LB - 900micron loose tube, C - 3mm loose tube cable |
| X : Fiber Length | 0.5 - 0.5m, 0.75 - 0.75m, 1 - 1.0 m, S - Specify |
| Y: Fiber Type | S - Specify |
| Z: Connector type | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC |
| Ordering Information | |
| SM1-SS-XX-1YY-Z | |
| SS: Wavelength | 64 - 980/1064nm, 15 - 1310/1550nm |
| XX: Connector type |
1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 5 - ST/UPC, 6 - LC/UPC, 7 - LC/APC, SMA - SMA, 8 - E2000/PC, S - Specify |
| 1YY : Jacket type at connector end |
LB - 1m long 900micron loose tube jacket at each connector end CB - 1m long 3mm loose tube jacket at each connector end |
| Z: Fiber length |
20 - 20m, 100 - 100m, 200 - 200m, 500 - 500m, 1KM - 1km, 5KM - 5km, 10KM - 10km, S - Specify length |
| Ordering Examples | |
| Part Number | Description |
| FOP-460-B-2-SM450-11 |
Single mode patchcord, 460nm, simplex, 250um bare fiber (with 3cm long 900micron loose tube at each connector end), Fibercore SM450 fiber, 2m fiber length, FC/UPC connector both ends |
| FOP-630-C-1-SM600-22 |
Single mode patchcord, 630nm, simplex, 3mm loose cable jacket (250um bare fiber/900micron loose tube/3mm loose tube jacket), Fibercore SM600 fiber, 1m fiber length, FC/APC connector both ends |
| FOP-830-C-10-SM800-22 |
Single mode patchcord, 830nm, simplex, 3mm loose cable jacket (250um bare fiber/900micron loose tube/3mm loose tube jacket), Fibercore SM800 fiber, 10m fiber length, FC/APC connector both ends |
| FOP-830-L-5-SM800-11 |
Single mode patchcord, 830nm, simplex, 900micron loose tube jacket, Fibercore SM800 fiber, 5m fiber length, FC/UPC connector both ends |
| FOP-830-L-2-SM800-12 |
Single mode patchcord, 830nm, simplex, 900micron loose tube jacket, Fibercore SM800 fiber, 2m fiber length, FC/UPC connector end1 and FC/APC connector end2 |
| FOP-830-L-1-SM800-22 |
Single mode patchcord, 830nm, simplex, 900micron loose tube jacket, Fibercore SM800 fiber, 2m fiber length, FC/APC connector both ends |
| FOP-630-B-1.5-SM600-22 |
Single mode patchcord, 630nm, simplex, 250um bare fiber, 1.5m fiber length, Fibercore SM600 fiber, FC/APC connector both ends |
| FOP-780-L-5-Hi780-11 |
Single mode patchcord, 780nm, simplex, 900micron loose tube jacket, Hi780 fiber, 5m fiber length, FC/UPC connector both ends |
P/N: SM1-22-B-50-BX

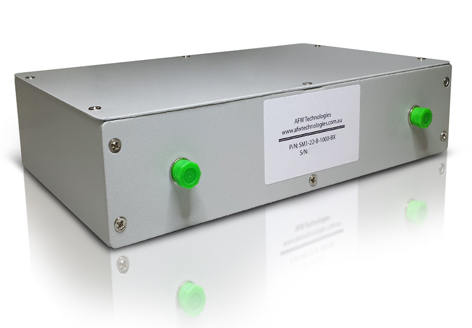

P/N: SM1-22-B-1000-BX
Reduced Cladding (RC) Fiber Patch Cords
80um Cladding
80um Cladding
Special Length Patch cords
For measurement applications
For measurement applications
Adaptors / Mating Sleeves
