| Based on fiber/connector availability, delivery is usually 3-4 days | |
| Part Number | Description |
| 50/125um Core fiber | |
|
MM1-FC-SMA-50/125-1-L-1-0.12 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 50/125 micron step index Silica core/silica clad fiber fiber, 3m fiber length, 3mm black color PVC jacket (250um/900um/3mm), 0.12NA |
|
MM1-FC-SMA-50/125-1-L-1-0.22 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 50/125 micron step index Silica core/silica clad fiber fiber, 3m fiber length, 3mm black color PVC jacket (250um/900um/3mm), 0.22NA |
| 105/125um Core fiber | |
|
MM1-FC-FC-105/125-1-L-0.22 |
Multimode Patchcord, FC/PC connector end1 and end2, 105/125 micron step index Silica core/silica clad fibe, 1m length, 250um/900umn loose tube jacket, NA 0.22 fibre |
|
MM1-FC-FC-105/125-2-N-0.22 |
Multimode Patchcord, FC/PC connector end1 and end2, 105/125 micron step index Silica core/silica clad fibe, 2m length, 3mm flexible nylon tubing, NA 0.22 fibre |
| MM1-SMA-SMA-105/125-1-L-0.22 |
Multimode Patchcord, SMA connector end1 and end2, 105/125 micron step index Silica core/silica clad fibe, 1m length, 250um/900umn loose tube jacket, NA 0.22 fibre |
|
MM1-SMA-FCA-105/125-1-N-0.22 |
Multimode Patchcord, SMA connector end1 and FC/APC connector end2, 105/125 micron step index Silica core/silica clad fibe, 1m length, 3mm flexible nylon tubing, NA 0.22 fibre |
|
MM1-SMA-FCA-105/125-3-L-0.22 |
Multimode Patchcord, SMA connector end1 and FC/APC connector end2, 105/125 micron step index Silica core/silica clad fibe, 3m length, 250um/900umn loose tube jacket, NA 0.22 fibre |
| 200/220um Core fiber | |
|
MM1-FC-SMA-200/220-1-C-0.12 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA |
|
MM1-FC-SMA-200/220-2-C-0.12 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA |
|
MM1-FC-FC-200/220-3-N-0.12 |
Multimode patch cord, FC/PC connector end1 and end2, 200/220 micron step index Silica core/silica clad fiber, 3m fiber length, 3mm flexible nylon tubing, 0.12NA |
|
MM1-FC-SMA-200/220-1-C-0.22 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA |
|
MM1-FC-SMA-200/220-3-N-0.22 |
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, 3m fiber length, 3mm flexible nylon tubing, 0.22NA |
|
MM1-SMA-SMA-200/220-1-C-0.22 |
Multimode patch cord, SMA905 connector end1 and end2, 200/220 micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA |
| 400/440um Core fiber | |
|
MM1-FC-FC-400/440-N-1-0.22 |
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 1m length, 0.22NA |
|
MM1-FC-FC-400/440-N-3-0.22 |
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 3m length, 0.22NA |
|
MM1-SMA-SMA-400/440-N-2-0.22 |
Multimode Patchcord, SMA connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 2m length, 0.22NA |
|
MM1-SMA-SMA-400/440-N-3-0.22 |
Multimode Patchcord, SMA connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 3m length, 0.22NA |
| 600/630um Core fiber | |
|
MM1-FC-FC-600/630-N-1-0.37 |
Multimode Patchcord, FC/PC connector end1 and end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA Pure fused silica core: 600 microns Hard polymer clad: 630 microns Clear Tefzel coating: 1,040 microns Outer jacket: 3mm flexible nylon |
|
MM1-SMA-SMA-600/630-N-1-0.37 |
Multimode Patchcord, SMA connector end1 and end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA Pure fused silica core: 600 microns Hard polymer clad: 630 microns Clear Tefzel coating: 1,040 microns Outer jacket: 3mm flexible nylon |
| 800/830um Core fiber | |
|
MM1-FC2-800/830-N-3-0.37 |
Multimode Patchcord, FC/PC connector end1 and end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 3m length, 0.37NA Pure fused silica core: 800 microns Hard polymer clad: 830 microns Clear Tefzel coating: 1,200 microns Outer jacket: 3mm flexible nylon |
|
MM1-SMA2-800/830-N-2-0.37 |
Multimode Patchcord, SMA905 connector end1 and end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 2m length, 0.37NA Pure fused silica core: 800 microns Hard polymer clad: 830 microns Clear Tefzel coating: 1,200 microns Outer jacket: 3mm flexible nylon |
| 800/880um Core fiber | |
|
MM1-FC2-800/880-N-1-0.22 |
Multimode Patchcord, FC/PC connector end1 and end2, 800/880µm step index silica core/silica clad fiber, 3mm flexible nylon jacket(1180um/3mm), 1m length, 0.22NA Pure fused silica core: 800 microns Fluorine doped silica clad: 880 microns Silicone buffer: 1,020 microns Blue Tefzel coating: 1,180 microns Outer jacket: 3mm flexible nylon |
|
MM1-SMA2-800/880-N-3-0.22 |
Multimode Patchcord, SMA905 connector end1 and end2, 800/880µm step index silica core/silica clad fiber, 3mm flexible nylon jacket(1180um/3mm), 3m length, 0.22NA Pure fused silica core: 800 microns Fluorine doped silica clad: 880 microns Silicone buffer: 1,020 microns Blue Tefzel coating: 1,180 microns Outer jacket: 3mm flexible nylon |
| Applications | Features | |
| Spectroscopy | Broad UV / VIS / NIR spectral range | |
| Sensors | Low NA 0.12, standard NA 0.22, High NA | |
| UV photolithography | Pure silica core and doped fluorine silica cladding | |
| Laser welding / soldering / marking |
Core/cladding 50/125, 105/125, 100/140, 200/220, 400/440, 600/660, 800/880 um step index mm fibre |
|
| Laser delivery |
Jacketed with 3mm PVC material and connector boots behind the connector |
|
| Nuclear plasma diagnostics | ||
| Analytical instruments | 1 to 3 meter or custom lengths | |
| Laser diode pigtailing | FC, SMA 905 or ST type connectors | |
| Semiconductor capital equipment | FC, ST or SMA adaptors | |
Frequently Asked Questions
A. Yes, we can supply 200/220micron silica/silica fibre in duplex format with ST connectors at each end.

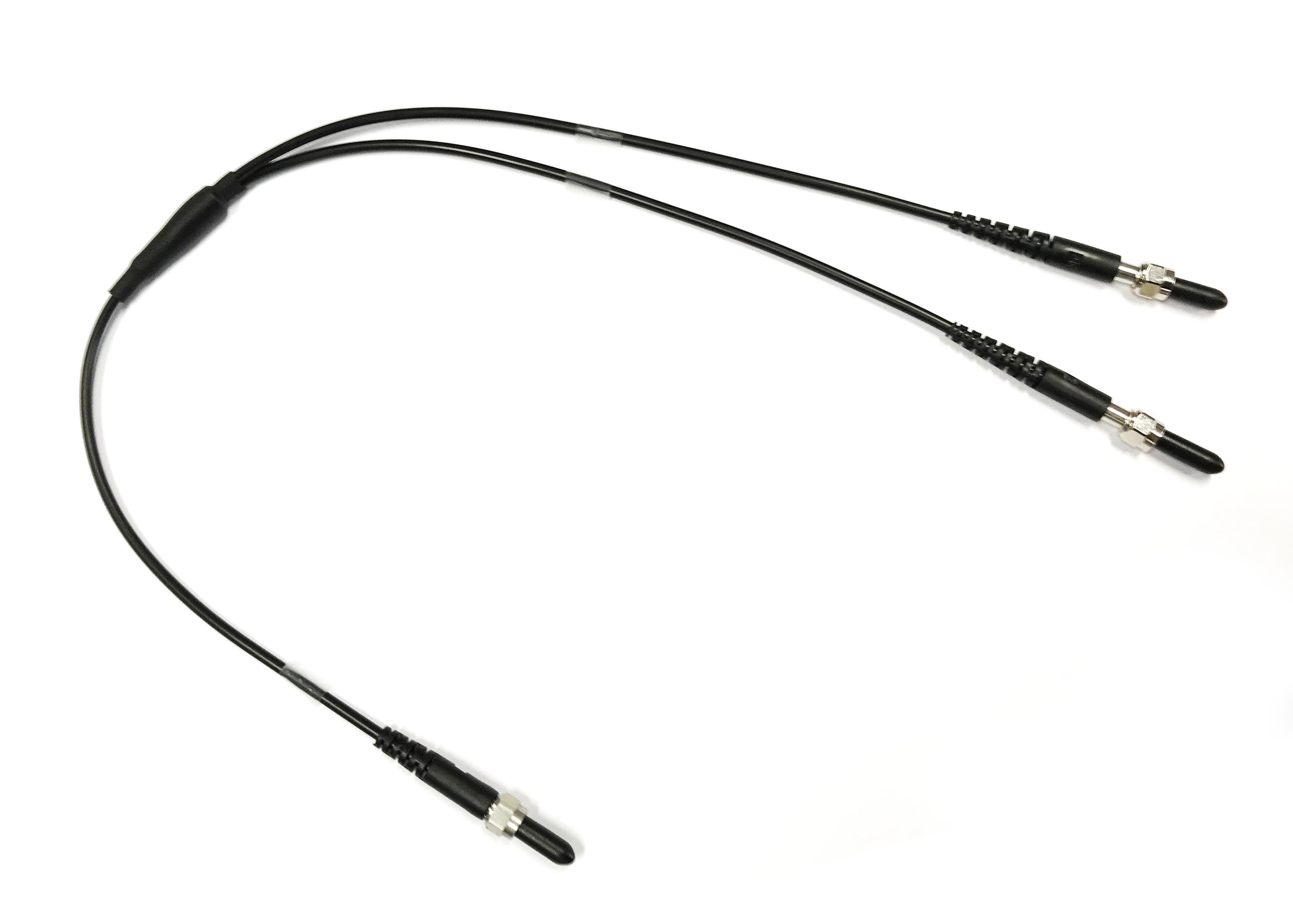

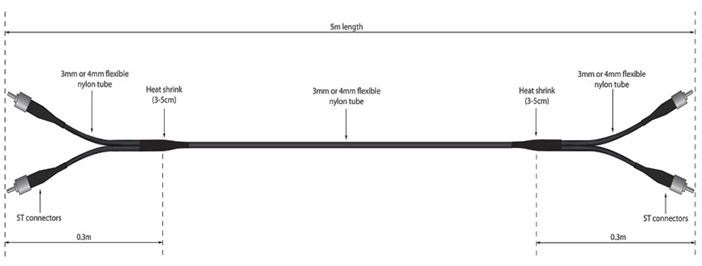

Please refer to the below sample diagram and picture of the cable.
Please refer to the below sample diagram and picture of the cable.

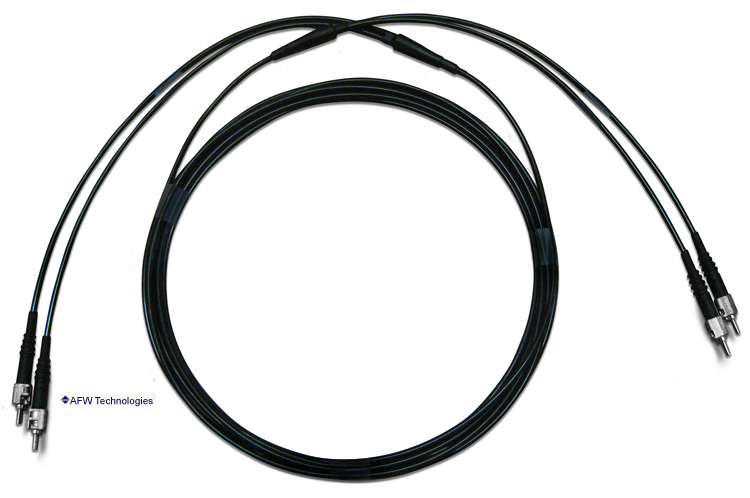

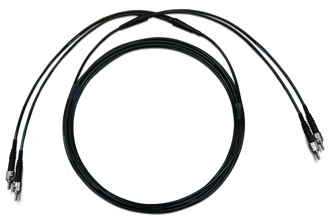

Q1. We are looking for a 5m long 200micron patch cord with ST connectors on each end, can you supply this
patchcord in duplex format; with two fibres in one cable?
patchcord in duplex format; with two fibres in one cable?

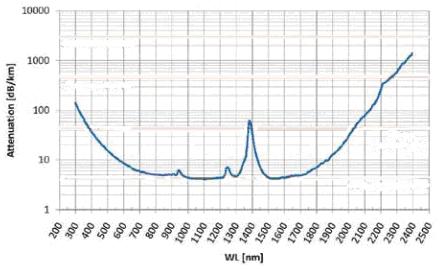

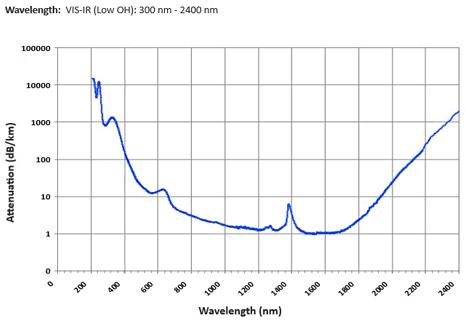

50/125um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
MM1-W-X-50/125-Y-Z-0.12NA
Multimode patch cord, 50/125 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 50micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can also supply various other connector types such as SC or ST
Pricing:
Patchcord with 1m fiber length: US$40/each
2m length: US$45, 3m length: US$50, 4m length: US$55, 5m length: US$60
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 50/125 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 50micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can also supply various other connector types such as SC or ST
Pricing:
Patchcord with 1m fiber length: US$40/each
2m length: US$45, 3m length: US$50, 4m length: US$55, 5m length: US$60
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-50/125-Y-Z-0.12NA | |
| W: Connector type (end1) | FC - FC/PC, FCA - FC/APC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, FCA - FC/APC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Available fiber core/cladding types
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FCA-50/125-1-C-0.12
Multimode patch cord, FC/PC connector end1 and FC/APC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-50/125-1-N-0.12
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-FC-FCA-50/125-1-C-0.12
Multimode patch cord, FC/PC connector end1 and FC/APC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-50/125-1-N-0.12
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm Flexible nylon tubing, 0.12NA
Product Description
Product Description
MM1-W-X-50/125-Y-Z-0.22NA
Multimode patch cord, 50/125 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 50micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can supply various other connector types such as SC or ST
Pricing:
Patchcord with 1m fiber length: US$40/each
2m length: US$45, 3m length: US$50, 4m length: US$55, 5m length: US$60
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 50/125 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 50micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can supply various other connector types such as SC or ST
Pricing:
Patchcord with 1m fiber length: US$40/each
2m length: US$45, 3m length: US$50, 4m length: US$55, 5m length: US$60
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-50/125-Y-Z-0.22NA | |
| W: Connector type (end1) | FC - FC/PC, FCA - FC/APC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, FCA - FC/APC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FCA-50/125-1-C-0.22
Multimode patch cord, FC/PC connector end1 and FC/APC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-50/125-5-N-0.22
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 50/125micron step index Silica core/silica clad fiber, 5m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-FC-FCA-50/125-1-C-0.22
Multimode patch cord, FC/PC connector end1 and FC/APC connector end2, 50/125micron step index Silica core/silica clad fiber, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-50/125-5-N-0.22
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 50/125micron step index Silica core/silica clad fiber, 5m fiber length, 3mm Flexible nylon tubing, 0.12NA
105/125um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-105/125-Y-Z-0.12NA
Multimode patch cord, 105/125 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 105micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can supply various other connector types such as SC or ST.
Pricing:
Patchcord with 1m fiber length: US$45/each
2m length: US$50, 3m length: US$55, 4m length: US$60, 5m length: US$65
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 105/125 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 105micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can supply various other connector types such as SC or ST.
Pricing:
Patchcord with 1m fiber length: US$45/each
2m length: US$50, 3m length: US$55, 4m length: US$60, 5m length: US$65
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-105/125-Y-Z-0.12NA | |
| W: Connector type (end1) | FC - FC/PC, FCA - FC/APC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, FCA - FC/APC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-SMA-105/125-2-C-0.12
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 105/125micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-0-105/125-3-N-0.12
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-FC-SMA-105/125-2-C-0.12
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 105/125micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-0-105/125-3-N-0.12
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
Product Ordering Examples:
MM1-FC-SMA-105/125-2-C-0.22
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 105/125micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-0-105/125-3-N-0.22
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
MM1-FC-SMA-105/125-2-C-0.22
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 105/125micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-0-105/125-3-N-0.22
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
MM1-W-X-105/125-Y-Z-0.22NA
Multimode patch cord, 105/125 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 105micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.

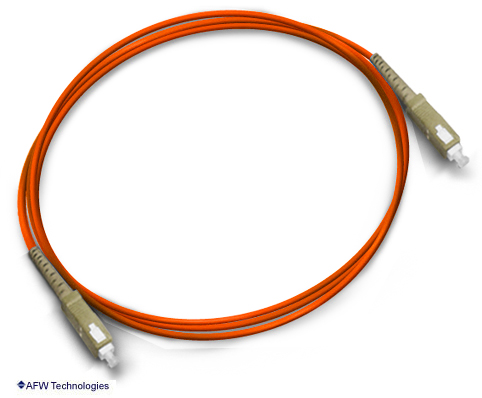

AFW can supply various other connector types such as SC or ST.
Pricing:
Patchcord with 1m fiber length: US$45/each
2m length: US$50, 3m length: US$55, 4m length: US$60, 5m length: US$65
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 105/125 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 105micron
Silica Cladding: 125micron
Acrylate Coating: 250micron
Connector type:
By default all SMA905 connector ferrules are Zirconia Ceramic.
Please specify if you require Metal/Alloy ferrules, which can be supplied.
All FC/PC and FC/APC connector ferrules are Zirconia Ceramic ferrules.
Metal/Alloy ferrules are also available for FC/PC.
AFW can supply various other connector types such as SC or ST.
Pricing:
Patchcord with 1m fiber length: US$45/each
2m length: US$50, 3m length: US$55, 4m length: US$60, 5m length: US$65
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$6/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Product Description

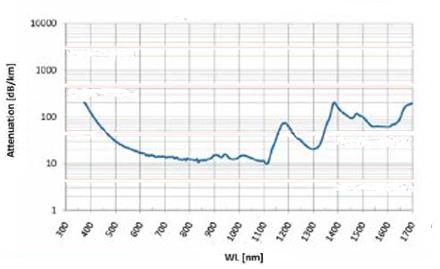

200/220um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-200/220-Y-Z-0.12NA
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 200micron
Silica Cladding: 220micron
Acrylate Coating: 320micron
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber, 0.12NA
Silica Core: 200micron
Silica Cladding: 220micron
Acrylate Coating: 320micron
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-200/220-Y-Z-0.12NA | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-SMA-200/220-2-C-0.12
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-0-200/220-3-N-0.12
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-FC-SMA-200/220-2-C-0.12
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-0-200/220-3-N-0.12
Multimode patch cord, FC/PC connector end1 and no connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-W-X-200/220-Y-Z-0.22NA
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 200micron
Silica Cladding: 220micron
Acrylate Coating: 320micron
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber, 0.22NA
Silica Core: 200micron
Silica Cladding: 220micron
Acrylate Coating: 320micron
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-200/220-Y-Z-0.22NA | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-SMA-200/220-2-C-0.22
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-FC-200/220-3-N-0.22
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
MM1-FC-SMA-200/220-2-C-0.22
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220micron step index Silica core/silica clad fiber, 2m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-FC-200/220-3-N-0.22
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 105/125micron step index Silica core/silica clad fiber, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
Product Description

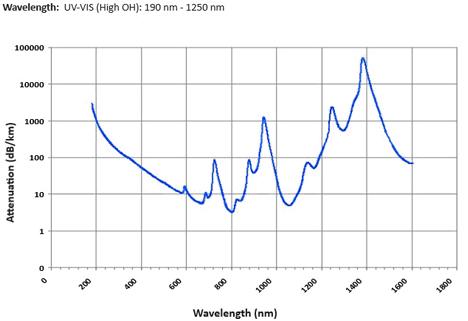

200/220um Large Core Fibre Patchcords UV-VIS (High OH): 190 nm - 1250 nm
Product Description
MMS1-W-X-200/220-Y-Z-0.22NA-UV
Multimode patch cord, solarization resistant, 200/220um MMF,
0.22NA, UV-VIS range Silica/Silica (Standard OH)
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$90/each
2m length: US$100, 3m length: US$110, 4m length: US$120, 5m length: US$130
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$11/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, solarization resistant, 200/220um MMF,
0.22NA, UV-VIS range Silica/Silica (Standard OH)
Connector type:
All FC/UPC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$90/each
2m length: US$100, 3m length: US$110, 4m length: US$120, 5m length: US$130
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$11/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-200/220-Y-Z-0.22NA-UV | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MMS1-SMA-SMA-200/220-1-C-0.22-UV
Multimode patch cord, solarization resistant, SMA connector end1 and end2, 200/220um MMF, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA, UV-VIS range Silica/Silica (Standard OH)
MMS1-SMA-FC-200/220-1-C-0.22-UV
Multimode patch cord, solarization resistant, SMA connector end1 and FC/PC connector end2, 200/220um MMF, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA, UV-VIS range Silica/Silica (Standard OH)
MMS1-SMA-SMA-200/220-1-C-0.22-UV
Multimode patch cord, solarization resistant, SMA connector end1 and end2, 200/220um MMF, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA, UV-VIS range Silica/Silica (Standard OH)
MMS1-SMA-FC-200/220-1-C-0.22-UV
Multimode patch cord, solarization resistant, SMA connector end1 and FC/PC connector end2, 200/220um MMF, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA, UV-VIS range Silica/Silica (Standard OH)
200/220um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-200/220-Y-Z-0.12NA-P
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber,
0.12NA, polymide coated
Silica Core: 200micron
Silica Cladding: 220micron
Polymide Coating: 250micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber,
0.12NA, polymide coated
Silica Core: 200micron
Silica Cladding: 220micron
Polymide Coating: 250micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-200/220-Y-Z-0.12NA-P | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-SMA-200/220-1-C-0.12NA-P
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-200/220-3-N-0.12NA-P
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
MM1-FC-SMA-200/220-1-C-0.12NA-P
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.12NA
MM1-FC-FC-200/220-3-N-0.12NA-P
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 3m fiber length, 3mm Flexible nylon tubing, 0.12NA
Product Description
MM1-W-X-200/220-Y-Z-0.22NA-P
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber,
0.22NA, polymide coated
Silica Core: 200micron
Silica Cladding: 220micron
Polymide Coating: 250micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 200/220 micron step index Silica core/silica clad fiber,
0.22NA, polymide coated
Silica Core: 200micron
Silica Cladding: 220micron
Polymide Coating: 250micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$80/each
2m length: US$86, 3m length: US$92, 4m length: US$98, 5m length: US$104
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$7/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-200/220-Y-Z-0.22NA-P | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-SMA-200/220-1-C-0.22NA-P
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-FC-200/220-3-N-0.22NA-P
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
MM1-FC-SMA-200/220-1-C-0.22NA-P
Multimode patch cord, FC/PC connector end1 and SMA connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 1m fiber length, 3mm black color PVC jacket (320um/900um/3mm), 0.22NA
MM1-FC-FC-200/220-3-N-0.22NA-P
Multimode patch cord, FC/PC connector end1 and FC/PC connector end2, 200/220 micron step index Silica core/silica clad fiber, polymide coated, 3m fiber length, 3mm Flexible nylon tubing, 0.22NA
400/440um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-400/440-Y-Z-0.12NA-P
Multimode patch cord, 400/440 micron step index Silica core/silica clad fiber,
0.12NA, polymide coated
Silica Core: 400micron
Silica Cladding: 440micron
Polymide Coating: 480micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 400/440 micron step index Silica core/silica clad fiber,
0.12NA, polymide coated
Silica Core: 400micron
Silica Cladding: 440micron
Polymide Coating: 480micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-400/440-Y-Z-0.12NA-P | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FC-400/440-N-1-0.12NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 1m length, 0.12NA
MM1-FC-FC-400/440-C-2-0.12NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm PVC jacket, 2m length, 0.12NA
MM1-FC-FC-400/440-N-1-0.12NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 1m length, 0.12NA
MM1-FC-FC-400/440-C-2-0.12NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm PVC jacket, 2m length, 0.12NA
Product Description
MM1-W-X-400/440-Y-Z-0.22NA-P
Multimode patch cord, 400/440 micron step index Silica core/silica clad fiber,
0.22NA, polymide coated
Silica Core: 400micron
Silica Cladding: 440micron
Polymide Coating: 480micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 400/440 micron step index Silica core/silica clad fiber,
0.22NA, polymide coated
Silica Core: 400micron
Silica Cladding: 440micron
Polymide Coating: 480micron
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-400/440-Y-Z-0.22NA-P | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FC-400/440-N-1-0.22NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 1m length, 0.22NA
MM1-FC-FC-400/440-C-2-0.22NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm PVC jacket, 2m length, 0.22NA
MM1-FC-FC-400/440-N-1-0.22NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm flexible nylon jacket(470um/3mm), 1m length, 0.22NA
MM1-FC-FC-400/440-C-2-0.22NA-P
Multimode Patchcord, FC/PC connector end1 and end2, 400/440µm step index silica core/silica clad fiber, polyimide coated, 3mm PVC jacket, 2m length, 0.22NA
600/630um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-600/630-Y-Z-0.37NA
Multimode patch cord, 600/630 micron step index Silica core/hard polymer
clad fiber, 0.37NA
Pure fused silica core: 600 microns
Hard polymer clad: 630 microns
Clear Tefzel coating: 1,040 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 600/630 micron step index Silica core/hard polymer
clad fiber, 0.37NA
Pure fused silica core: 600 microns
Hard polymer clad: 630 microns
Clear Tefzel coating: 1,040 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$95/each
2m length: US$115, 3m length: US$135, 4m length: US$155, 5m length: US$175
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-600/630-Y-Z-0.37NA | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FC-600/630-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
MM1-FC-SMA-600/630-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and SMA connector end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
MM1-FC-FC-600/630-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
MM1-FC-SMA-600/630-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and SMA connector end2, 600/630µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
800/830um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-800/830-Y-Z-0.37NA
Multimode patch cord, 800/830 micron step index Silica core/hard polymer clad
fiber, 0.37NA
Pure fused silica core: 800 microns
Hard polymer clad: 830 microns
Clear Tefzel coating: 1,200 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$100/each
2m length: US$120, 3m length: US$140, 4m length: US$160, 5m length: US$180
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 800/830 micron step index Silica core/hard polymer clad
fiber, 0.37NA
Pure fused silica core: 800 microns
Hard polymer clad: 830 microns
Clear Tefzel coating: 1,200 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$100/each
2m length: US$120, 3m length: US$140, 4m length: US$160, 5m length: US$180
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$21/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-800/830-Y-Z-0.37NA | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-FC-FC-800/830-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
MM1-FC-SMA-800/830-N-5-0.37
Multimode Patchcord, FC/PC connector end1 and SMA connector end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 5m length, 0.37NA
MM1-FC-FC-800/830-N-1-0.37
Multimode Patchcord, FC/PC connector end1 and end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 1m length, 0.37NA
MM1-FC-SMA-800/830-N-5-0.37
Multimode Patchcord, FC/PC connector end1 and SMA connector end2, 800/830µm step index silica core/hard polymer clad fiber, 3mm flexible nylon jacket(1200um/3mm), 5m length, 0.37NA
800/880um Large Core Patchcord 0.22NA VIS-IR (Low OH): 300nm-2400nm
Product Description
MM1-W-X-800/880-Y-Z-0.22NA
Multimode patch cord, 800/880 micron step index Silica core/silica clad fiber, 0.22NA
Pure fused silica core: 800 microns
Fluorine doped silica clad: 880 microns
Silicone buffer: 1,020 microns
Blue Tefzel coating: 1,180 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$130/each
2m length: US$190, 3m length: US$250, 4m length: US$310, 5m length: US$370
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$61/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
Multimode patch cord, 800/880 micron step index Silica core/silica clad fiber, 0.22NA
Pure fused silica core: 800 microns
Fluorine doped silica clad: 880 microns
Silicone buffer: 1,020 microns
Blue Tefzel coating: 1,180 microns
Outer jacket: 3mm flexible nylon
Connector type:
All FC/PC or SMA905 connector ferrules are metal or alloy.
Pricing:
Patchcord with 1m fiber length: US$130/each
2m length: US$190, 3m length: US$250, 4m length: US$310, 5m length: US$370
Prices are without GST which will be added for Australian customers. Prices are GST free for overseas customers.
Please select required connector type for each end, fiber length and jacket type from the ordering information section below.
For this item there is a price increase of US$61/per meter from 6m to 10m.
Longer lengths up to 20m or 50m can also be supplied. Please email us with your requirement: sales@afwtechnologies.com.au
| MM1-W-X-800/880-Y-Z-0.22NA | |
| W: Connector type (end1) | FC - FC/PC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Lead-time:
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Based on an order quantity of 1-5pcs and the fibre and connector availability the lead-time is 4-5 days.
For higher quantities please send us an email to discuss the lead-time.
If the fiber is not in-stock the lead-time is 2-3 weeks.
Product Ordering Examples:
MM1-SMA-SMA-800/880-N-3-0.22
Multimode Patchcord, SMA905 connector end1 and end2, 800/880µm step index silica core/silica clad fiber, 3mm flexible nylon jacket(1180um/3mm), 3m length, 0.22NA
MM1-SMA-FC-800/880-C-5-0.22
Multimode Patchcord, SMA905 connector end1 and FC/PC connector end2, 800/880µm step index silica core/silica clad fiber, 3mm PVC jacket, 5m length, 0.22NA
MM1-SMA-SMA-800/880-N-3-0.22
Multimode Patchcord, SMA905 connector end1 and end2, 800/880µm step index silica core/silica clad fiber, 3mm flexible nylon jacket(1180um/3mm), 3m length, 0.22NA
MM1-SMA-FC-800/880-C-5-0.22
Multimode Patchcord, SMA905 connector end1 and FC/PC connector end2, 800/880µm step index silica core/silica clad fiber, 3mm PVC jacket, 5m length, 0.22NA
Ordering Examples
Ordering Information
Ordering Information
Ordering Information
| MM1-W-X-105/125-Y-Z-0.22NA | |
| W: Connector type (end1) | FC - FC/PC, FCA - FC/APC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, FCA - FC/APC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information
Ordering Information

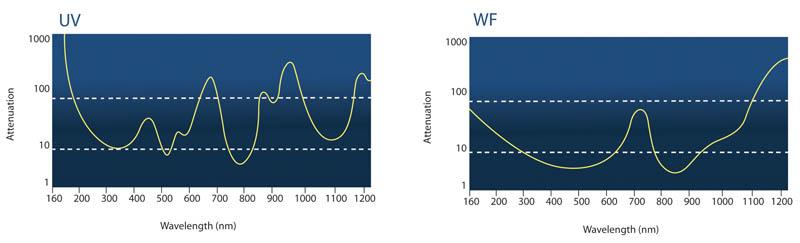

Solarization Resistant UV FIber is hydrogen infused to improve long-term attenuation stability at short UV wavelengths (190nm – 230nm). The fiber is the ideal choice for UV Spectroscopy, Lithography, Excimer Laser Systems and UV curing applications that use Deuterium Lamps or other UV sources below 230nm.
Applications:
• Laser Surgery
• Semiconductor Manufacturing
• UV Illumination
Applications:
• Laser Surgery
• Semiconductor Manufacturing
• UV Illumination
• Photo Initiated Chemistry
• UV Curing
• Analytical Instruments
• UV Curing
• Analytical Instruments
SC/PC connectors

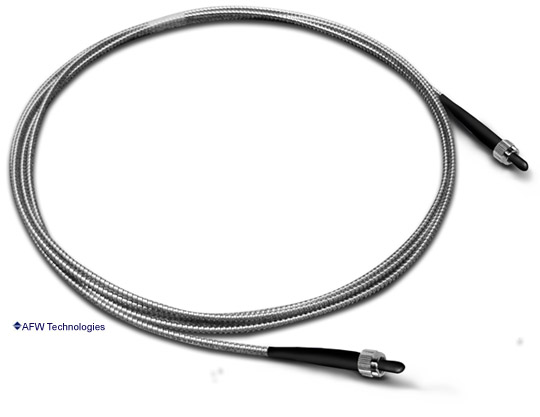

SMA connectors
FC/APC connectors

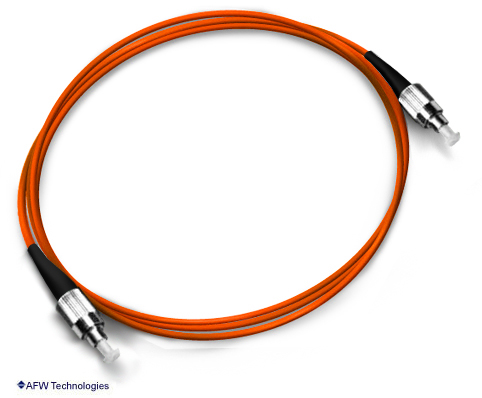

FC/PC connectors
AFW Technologies
Fiber Optic and Micro Optics
Fiber Optic and Micro Optics
•50/125um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
•105/125um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
•200/220um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
•200/220um Large Core Fibre Patchcords Solarization Resistant UV-VIS (High OH): 190 nm - 1250 nm
•200/220um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
•400/440um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
•600/630um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
•800/830um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
•800/880um Large Core Patchcord 0.22NA VIS-IR (Low OH): 300nm-2400nm
•105/125um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
•200/220um Large Core Fibre Patchcord VIS-IR (Low OH): 300nm-2400nm
•200/220um Large Core Fibre Patchcords Solarization Resistant UV-VIS (High OH): 190 nm - 1250 nm
•200/220um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
•400/440um Large Core Polymide Coated Patchcord VIS-IR (Low OH): 300nm-2400nm
•600/630um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
•800/830um Large Core Patchcord 0.37NA VIS-IR (Low OH): 300nm-2400nm
•800/880um Large Core Patchcord 0.22NA VIS-IR (Low OH): 300nm-2400nm
Large diameter core multimode fibre cable assemblies for broad
UV/VIS/NIR spectral range
AFW supplies optical fibre and assemblies for various industry and research applications.
We offer several fibre core sizes terminated with SMA, ST or FC type connectors.
UV/VIS/NIR spectral range
AFW supplies optical fibre and assemblies for various industry and research applications.
We offer several fibre core sizes terminated with SMA, ST or FC type connectors.
Custom optical fibre assembly, Step Index Fibre, Y shape
Product Description
CAB-ASS-Y-Z-Y-VWX
Custom optical fibre assembly, step index, Y shape using, 600/630um step index silica core/hard polymer clad fiber, FC or SMA connectors, 0.39NA
Please email us with a complete description for a quotation
Custom optical fibre assembly, step index, Y shape using, 600/630um step index silica core/hard polymer clad fiber, FC or SMA connectors, 0.39NA
Please email us with a complete description for a quotation
Custom optical fibre assembly, Step Index Fibre, Y shape:
Ordering Information
Ordering Information
| MM1-W-X-50/125-Y-Z-0.12NA | |
| W: Connector type (end1) | FC - FC/PC, FCA - FC/APC, SMA - SMA |
| X: Connector type (end2) | FC - FC/PC, FCA - FC/APC, SMA - SMA, 0 - No connector |
| Y : Patchcord length | 1 - 1m, 2 - 2m, 3 - 3m, 4 - 4m, 5 - 5m |
| Z: Jacket type | L - 900um loose tube jacket, C - 3mm PVC jacket, N - 3mm Flexible nylon tubing |
