| Multimode filter wavelength division multiplexer - 1310/1550nm or 850/1310nm | |||
| Specifications | |||
| Parameters | Unit | Values | |
| Pass band | Wavelength range | nm | 830-870(1290-1330) 1270-1350(1530-1600) |
| Typ. insertion loss | dB | 0.3dB | |
| Max. insertion loss | dB | 0.8dB | |
| Typ. isolation | dB | 35dB | |
| Min. isolation | dB | 30dB | |
| Reflection Band | Wavelength range | nm | 1290-1330(830-870) 1530-1600(1270-1350) |
| Typ. insertion loss | dB | 0.3dB | |
| Max. insertion loss | dB | 0.5dB | |
| Typ. isolation | dB | 15dB | |
| Min. isolation | dB | 12dB | |
| Min. return loss | dB | 40dB | |
| Max.TDL | dB | 0.15dB | |
| Max. optical power | mW | 300mW | |
| Max. tensile load | N | 5 | |
| Fiber type | um | Multimode fiber 62.5/125 or 50/125 | |
| Operation temperature | °C | -5 to +70 | |
| Storage temperature | °C | -40 to +85 | |
| Note1: Values specified are without connector loss. | |||
| Note2: Specifications are subject to change without notice | |||
Multimode Filter Wavelength Division Multiplexer
The multimode filter wavelength division multiplexer series is based on environmentally stable thin film filters technology. The devices combine or separate light at different wavelengths in a wide wavelength range. They offer very low insertion loss, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in multi-mode fiber communication, CATV and testing instrumentation.
The multimode filter wavelength division multiplexer series is based on environmentally stable thin film filters technology. The devices combine or separate light at different wavelengths in a wide wavelength range. They offer very low insertion loss, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in multi-mode fiber communication, CATV and testing instrumentation.
| Ordering Information | ||
| FWDM-MM-SSSS-T-X-Y-Z | ||
| SSSS - Wavelength |
1315 - 1310 Pass / 1550 Reflect 1513 - 1550 Pass / 1310 Reflect |
8513 - 850 Pass / 1310 Reflect 1385 - 850 Reflect / 1310 Pass |
| T : Fibre core | 1 - 62.5um, 2 - 50um | |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| Y: Pigtail length | 1 - 1.0m, S - Specify | |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify | |

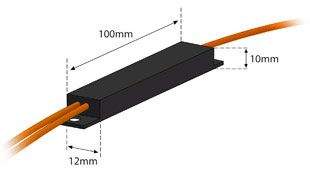

Package Dimensions
| Ordering Examples | |
| Part Number | Description |
| FWDM-MM-1315-1-B-1-0-HI |
MM filter WDM, 1310nm pass/1550nm reflect, 62.5/125um MM fiber, 250um bare fiber, 1m fiber length, no connector, 25dB isolation each arm |
| FWDM-MM-1315-1-L-1-0-HI |
Multimode filter WDM, 1310nm pass/1550nm reflect, 62.5/125um MMF, 900um loose tube jacket, 1m fiber length, no connector, 25dB isolation each arm |
| FWDM-MM-1315-2-L-1-0-HI |
MM filter WDM,1310/1550nm, reflect, 900um loose tube jacket, 50/125um fibre, 1m fibre length, without connectors, 25dB isolation |
| FWDM-MM-1585-1-B-1-0-HI |
Multi mode filter WDM, 1550nm pass/850nm reflect, 62.5/125um MM fibre, 250um bare fibre, 1m fiber length, no connector, 25dB isolation |
| FWDM-MM-1585-1-L-1-0-VR01 |
MM filter WDM, 1550nm pass/850nm reflect, 62.5/125um MMF, 900micron loose tube jacket, 1m fiber length, no connector |
|
FWDM-MM-8513-2-L-1-0-HI |
Multimode filter WDM, 850/1310nm, 900um loose tube jacket, 50/125um fiber, 1m fiber length, without connectors, 25dB isolation |
| FWDM-MM-8513-1-L-2-2-HI |
Multimode filter WDM, 850/1310nm, 900um loose tube jacket, 62.5/125um MMF, 2m fiber length, FC/APC connectors, 25dB isolation |
| FWDM-MM-8513-2-B-1-0-HI |
Multimode filter WDM, 850/1310nm, 250um bare fibre, 50/125um fiber, 1m fiber length, without connectors, 25dB isolation |
| FWDM-MM-8513-2-C-1-1-HI |
Multimode filter WDM, 850/1310nm, 3mm loose cable jacket, 50/125um fiber, 1m fiber length, FC/UPC connectors, 25dB isolation |
