| Ordering Examples | |
| Part Number | Description |
| CIR-3-13-C-1-1 | 3 port fiber optic circulator, 1310nm, SMF28e fiber, 3mm cable jacket with package box, 1m fiber length each port, FC/UPC connector all ports |
| CIR-3-13-L-1-0 | 3 port fiber optic circulator 1310nm, SMF28e singlemode fiber, 900um loose tube jacket, 1m fiber length, without connectors |
| CIR-3-13-L-1-6 | 3 port fiber optic circulator 1310nm, SMF28e singlemode fiber, 900um loose tube jacket, 1m fiber length, LC/UPC connectors |
| CIR-3-13-L-1-343 | 3 port singlemode fibre circulator, 1310nm, SMF28e single mode fiber, 900um loose tube jacket, 1m fibre length each pigtail, SC/UPC connector on port 1 and 3, SC/APC connector on port 2 |
| CIR-3-15-B-1-0-1W | 3 port SM circulator, 1550nm, 250um bare fiber, SMF28e fibre, 1m fibre length, without connector, 1W power handling |
| CIR-3-15-C-1-2 | 3 port fiber optic circulator, 1550nm, 3mm cable jacket with package box, SMF28e singlemode fiber, 1m fiber length, FC/APC connector |
| CIR-3-15-L-1-1 |
3 port fiber optic circulator, 1550nm, 900micron jacket, SMF28e fiber, 1m fiber length, FC/UPC connectors |
| CIR-3-15-L-2-0 | 3port fibre optic circulator, 1550nm, SMF28e fiber, 900micron loose tube jacket, 2m fibre length, no connector |
| CIR-4-15-L-1-0 | 4port fiber optic circulator, 1550nm, SMF28 singlemode fiber, 900micron loose tube jacket, 1m fiber length, without connectors |
| CIR-4-15-L-1-2 | 4port fiber optic circulator, 1550nm, SMF28 fiber, 900um loose tube jacket, 1m fibre length, FC/APC connector all ports |
| CIR-4-15-L-S-2 | 4 port fibre optic circulator, 1550nm, single mode,900um loose tube jacket, 16~18cm fibre length including connector, FC/APC connectors |
| 3 port Fiber Optic Circulator 1310/1550nm | |
| Specifications | |
| Parameters | Values |
| Central wavelength | 1310nm or 1550nm |
| Operating wavelength | ±20nm |
| Insertion loss | <0.8dB |
| Isolation | >45dB |
| Cross talk | >50dB |
| Return loss | >50dB |
| Max PDL | 0.15dB |
| Min PMD | 0.1ps |
| Max. optical power | 300mW |
| Max. tensile load | 5N |
| Fiber Type | SMF28e |
| Operation temperature | -5°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Package dimensions | dia 5.5 x 60mm |
| Note1: Values specified are without connector loss. | |
| Note2: Specifications are subject to change without notice | |
| Ordering Information | |
| CIR-4-SS-X-Y-Z | |
| SS : Wavelength | 13 - 1310nm, 15 - 1550nm |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
| Y: Pigtail length | 1 - 1.0 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
Fibre Optic Circulator 3 port or 4 port
The 3 or 4 port Fiber optic Circulator is a compact, high performance light wave component that transmits the incoming signal from port 1 to port 2, and another incoming signal from port 2 to port 3 simultaneously. The component provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.
The 3 or 4 port Fiber optic Circulator is a compact, high performance light wave component that transmits the incoming signal from port 1 to port 2, and another incoming signal from port 2 to port 3 simultaneously. The component provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination with fiber gratings and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.
Package Dimensions - 3 Port Fiber Optic Circulator
| 4 port Fiber Optic Circulator 1310/1550nm | |
| Specifications | |
| Parameters | Values |
| Central wavelength | 1310nm or 1550nm |
| Operating wavelength | ± 30nm |
| Transmitting direction | 1->2, 2->3, 3->4 |
| Insertion loss | <0.8dB |
| Isolation | >45dB |
| Directivity | >50dB |
| Return loss | >50dB |
| PDL | <0.15dB |
| PMD | <0.05ps |
| Max. optical power | 300mW |
| Max. tensile load | 5N |
| Fiber type | SMF28e |
| Operation temperature | -5 to +70°C |
| Storage temperature | -40 to +85°C |
| Package dimensions | dia 5.5 x 60mm |
| Note1: Values specified are without connector loss. | |
| Note2: Specifications are subject to change without notice | |
Package Dimensions - 4 Port Fiber Optic Circulator
|
Light path: Port1 -> Port2 Port2 -> Port3 Port3 -> Port4 |
| Ordering Information | |
| CIR-3-SS-X-Y-Z | |
| SS : Wavelength | 13 - 1310nm, 15 - 1550nm |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
| Y: Pigtail length | 1 - 1.0 m, S - Specify |
| Z: Connector |
1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
Frequently Asked Questions
Q1. We are looking for a 3 port circulator array to mount into a equipment cabinet in our server room.
Q1. We are looking for a 3 port circulator array to mount into a equipment cabinet in our server room.
A. We have 19" 1RU racks loaded with x8 3 port 1310nm, 1550nm or both types of circulators. All ports are on the front panel for easy access. We recommend having port 2 (network port) with SC/APC connectors as the below pictures. The light path for each circulator will be port 1-> port 2 and port 2 -> port 3.
Q2. We are using an 8CH 1RU rack CWDM mux/demux between our 2 offices. Currently we use one fibre pair to transmit and receive. We are running out of fibres between the two offices, is there any solution to release one fibre for anther application without disturbing the current setup?
A. Yes, we have a product that comes with 8CH CWDM mux and demux that utilizes a single fibre to transmit and receive. Using our product you can release one fibre for your other application, if you are interested please email us for further information.
Q2. We are using an 8CH 1RU rack CWDM mux/demux between our 2 offices. Currently we use one fibre
pair to transmit and receive. We are running out of fibres between the two offices, is there any
solution to release one fibre for anther application without disturbing the current setup?
pair to transmit and receive. We are running out of fibres between the two offices, is there any
solution to release one fibre for anther application without disturbing the current setup?
Fiber Optic Circulator 1310 and 1550nm
1RU Rack
|
Light path: Port1 -> Port2 Port2 -> Port3 |

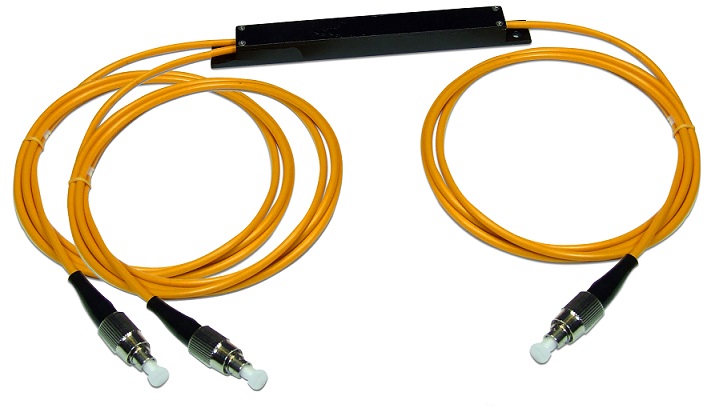

| 3 port Multimode Fiber Optic Circulator 1310/1550nm | |
| Specifications | |
| Parameters | Values |
| Central wavelength | 1310nm or 1550nm |
| Operating wavelength | ±20nm |
| Insertion loss | <1.2dB, typ: 1.0dB |
| Isolation | >30dB |
| Cross talk | >40dB |
| Return loss | >40dB |
| PDL | <0.2dB |
| Max. Optical Power(CW), total | 300mw |
| Max. tensile load | 5N |
| Fiber Type | 50/125um or 62.5/125um |
| Operation temperature | -5°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Note1: Values specified are without connector loss. | |
| Note2: Specifications are subject to change without notice | |
Package Dimensions - 3 Port Multimode Fiber Optic Circulator
| Ordering Information | |
| CIR-MM-3-SS-X-Y-Z | |
| SS : Wavelength | 13 - 1310nm, 15 - 1550nm |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
| Y: Pigtail length | 1 - 1.0 m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |
