| Ordering Examples | |
| Part Number | Description |
| CWDMM-SM-8-L-1-S-2 |
CWDM mux module, 8 channel, 1471, 1491,1511, 1531, 1551, 1571, 1591, 1611nm, 900um loose tube jacket, 1m fiber length, FC/APC connectors all ports |
| CWDMM-SM-8-L-1-S-5 |
CWDM mux module, 8 channel, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm, 900um jacket, 1m fiber length, SC connector channel ports and SC/APC connector network port |
| CWDMM-SM-D-8-L-0.5-2-5 |
CWDM mux module, demux, 8 channel, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm, 900um jacket, 0.5m fibre length, FC/APC connector all ports |
| CWDM-SM-1551-L-1-2 |
CWDM, singlemode, 1551nm center wavelength, 900micron jacket, 1m fibre length, SMF28e, FC/APC connector all ports |
| CWDM-SM-1591-L-1-2-1W |
Coarse WDM 1591nm, 900um pigtails, 1m fiber length, SMF28e fiber, FC/APC connector all ports, 1W CW total power handling |
| CWDM-SM-49-L-1-6 |
Coarse WDM 1491nm, 900um pigtails, 1m fiber length, SMF28e fiber, LC/UPC connector all ports |
| CWDM-SM-57-L-0.5-1 |
Coarse wavelength division multiplexer, SMF28e fibre, 1571nm, 900um loose tube jacket, 0.5m fibre length, FC/UPC connectors |
| CWDM-SM-59-B-1-1 | CWDM, 1591nm, 250um bare fibre, SMF28e fibe, 1m fibre length, FC/UPC connector |
| CWDM-SM-61-L-0.5-1 |
Coarse wavelength division multiplexer, SMF28e fiber, 1611nm, 900um loose tube jacket, 0.5m fiber length, FC/UPC connectors |
| Coarse Wavelength Division Multiplexer Module (4 channel / 8channel) | ||||
| Specifications | ||||
| Parameters | 4-channel | 8-channel | ||
| Center wavelength | 1511, 1531, 1551, 1571nm | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm | ||
| Pass bandwidth@0.5dB | >13nm | >13nm | ||
| Insertion loss | <2.0dB | <3.2dB | ||
| Adjacent Ch .isolation mux | N/A | N/A | ||
| Adjacent Ch .isolation demux | >25dB | >25dB | ||
| Return loss | >50dB | >50dB | ||
| Directivity | >55dB | >55dB | ||
| PDL | <0.1dB | |||
| PMD | <0.2ps | |||
| Thermal stability | <0.005°C | |||
| Fiber type | SMF28e | |||
| Operating temperature | -5°C to +70°C | |||
| Storage temperature | -40°C to +85°C | |||
| Package dimension | 100x80x9.5 | 133.3x95.2x9.5 | ||
| Note1: Values specified are without connector loss. | ||||
| Note2: Package dimensions can change without notice. | ||||
| Note3: Specifications are subject to change without notice | ||||
Package Dimensions - CWDM Module (4 channel / 8channel)
Coarse Wavelength Division Multiplexer Module
(4 channel / 8channel)
The coarse WDM Module is expanding the bandwidth of Metro/Access Networks. The 4-channel and 8-channel CWDM modules are based on Coarse Wavelength Division Multiplexer devices. They can act as MUX/DEMUX with 20nm channel spacing. It has low insertion loss, low PDL, high isolation and good thermal stability.
Coarse Wavelength Division Multiplexer (CWDM)
The Coarse Wavelength Division Multiplexer series is designed and manufactured to Telcordial standard. The devices use environmentally stable Thin Film Filters and advanced packaging technology to achieve a wide pass band, low insertion loss, high channel isolation and excellent environmental stability. They can be used individually to perform single channel add or drop functions or can be cascaded into sequence for multi-channel applications in CWDM systems.
(4 channel / 8channel)
The coarse WDM Module is expanding the bandwidth of Metro/Access Networks. The 4-channel and 8-channel CWDM modules are based on Coarse Wavelength Division Multiplexer devices. They can act as MUX/DEMUX with 20nm channel spacing. It has low insertion loss, low PDL, high isolation and good thermal stability.
Coarse Wavelength Division Multiplexer (CWDM)
The Coarse Wavelength Division Multiplexer series is designed and manufactured to Telcordial standard. The devices use environmentally stable Thin Film Filters and advanced packaging technology to achieve a wide pass band, low insertion loss, high channel isolation and excellent environmental stability. They can be used individually to perform single channel add or drop functions or can be cascaded into sequence for multi-channel applications in CWDM systems.
| Ordering Information | ||
| CWDMM-SM-P-R-S-X-Y-Z | ||
| P : Module Type | M - MUX, D - DEMUX | |
| R : Number of channels | 4 - 4 channels, 8 - 8 channels | |
| S : Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
|
| X : Pigtail length | 0.5- 0.5m, 1 - 1m, S - Specify | |
| Y : Connector | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none | |
| Z : Wavelength |
1 - 1511, 1531, 1551, 1571nm 3 - 1471, 1491, 1511, 1531nm |
2 - 1471, 1491, 1591, 1611nm 4 - 1511, 1531, 1591, 1611nm |
| 5 - 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm | ||
| Coarse Wavelength Division Multiplexer (CWDM) | ||||
| Specifications | ||||
| Parameters | Values | |||
| Center wavelength | 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm | |||
| 0.5dB Pass bandwidth | >13nm | |||
| Insertion loss | <0.6dB | |||
| Reflection insertion loss | <0.5dB | |||
| Adjacent Ch. isolation | >25dB | |||
| Optical return loss | >50dB | |||
| PDL | <0.1dB | |||
| Thermal stability | <0.005dB/°C | |||
| Fiber type | SMF28e | |||
| Operation temperature | -5°C to +70 °C | |||
| Storage temperature | -40°C to +85°C | |||
| Note1: Values specified are without connector loss. | ||||
| Note2: Specifications are subject to change without notice | ||||
| Ordering Information | |
| CWDM-SM-SS-X-Y-Z | |
| SS - Wavelength |
47 - 1471nm, 49 - 1491nm, 51 - 1511nm, 53 - 1531nm, 55 - 1551nm, 57 - 1571nm, 59 - 1591nm, 61 - 1611nm |
| X: Pigtail type |
B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket, S - Specify |
| Y : Pigtail length | 1 - 1.0 m, S - Specify |
| Z : Connector type | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - none |

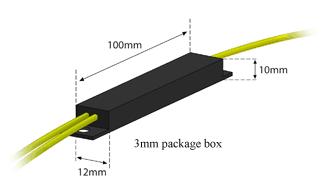

Package Dimensions - CWDM
Frequently Asked Questions
Q2 Currently we have a fibre optic link operating in 1310nm wavelength range. Can we integrate an 8CH CWDM
MUX/DEMUX (1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm ) into the same optical link?
MUX/DEMUX (1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm ) into the same optical link?
Q1. We are looking for a CWDM 1RU rack with 8 channels using duplex format.
A. Yes we can supply 1RU racks as shown in the below pictures. They are loaded with x2 8 channel CWDM modules. The first module can be used as a Multiplexer and the second module can be used as a Demultiplexer.
Q3. We are interested in having an 8 channel CWDM 1 RU rack with the option of having Monitor and Pass ports.
A. Yes we can provide CWDM 1RU racks with the additional features of having a 1% Monitor and Pass port. Please refer to the below picture displaying the ports.
Q2. Currently we have a fibre optic link operating in 1310nm wavelength range. Can we integrate an 8CH CWDM MUX/DEMUX (1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm ) into the same optical link?
A. Yes, it is possible for us to supply an 8CH CWDM MUX/DEMUX plus a 1310nm Tx/Rx port. You can use an existing fibre link to transmit and receive 1310nm signasl and 8 CWDM channels. Please refer to the below sample picture of a 1RU rack with CWDM and 1310nm ports.
