AFW Technologies
Fiber Optic and Micro Optics
Fiber Optic and Micro Optics
| Ordering Information | |
| PMP-SS-V-X-Y-Z1Z2 | |
| SS: Wavelength | 15 - 1550 nm, 13 - 1310 nm, 64 - 1064 nm, 30 - 1030nm, 98 - 980 nm, S - Specify |
| V: Key Width (For FC connector ) | R - 2.02 mm (>23dB ER), N - 2.14 mm (>20dB ER) |
| X : Cable type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y : Fiber length | 0.5 - 0.5m, 0.75 - 0.75 m, 1 - 1m, 5 - 5m, S - Specify |
| Z: Connector type end1 | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - None |
| 1: Axis alignment end1 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
| Z: Connector type end2 | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - None |
| 2: Axis alignment end2 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
| Ordering Examples - Standard Length Patchcords: +/-10cm Length Tolerance | |
| Part Number | Description |
| PMP-15-R-C-0.5-22 |
Polarization maintaining patchcord, 1550nm, 2.02mm connector key (R key), 3mm jacket, 0.5m fibre length, panda fiber, FC/APC connector both ends, slow axis align to connector key |
| PMP-15-R-C-1-11 |
PM patch cord, 1550nm, 2.02mm connector key (R key), 3mm jacket, 1m fiber length, panda fiber, FC/UPC connector both ends, slow axis align to connector key |
|
PMP-15-R-L-2-22 |
Polarization maintaining patchcord, 1550nm, 2.02mm connector key (R key), 900 micron loose tube jacket, 2m fibre length, panda fiber, FC/APC connector both ends, slow axis align to connector key |
| PMP-64-R-C-2-20 |
PM patchcord, 1064nm, 2.02mm key width (R type), 3mm cable, 2m fiber length, 980nm panda fiber, FC/APC connector end 1 and no connector end2, slow axis of fiber align to connector key |
| PMP-13-R-C-1-12 |
Polarization maintaining patch cord,1310nm, 2.02mm narrow key connector (R type), 3mm cable, 1m length, PM panda fibre, FC/UPC end1 and FC/APC end2, slow axis align to connector key |
| PMP-13-R-L-1-22 |
Polarization maintaining patchcord, 1310nm, 2.02mm narrow key connector (R type), 900 micron loose tube jacket, 1m length, PM panda fibre, FC/APC connector both ends, slow axis align to connector key |
| PMP-15-B-1-22 |
Polarization maintaining patchcord, 1550nm, 250um bare fiber, PM panda fiber, 1m fiber length, FC/APC connector both ends, 2.02mm narrow key connector (R type), (3cm long 900micron loose tube at each connector end), slow axis align to connector key |
| PMP-15-R-C-0.5-12 |
PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable, 0.5m length, PM panda fibre, FC/UPC connector end 1 and FC/APC connector end 2, slow axis aligned to connector key |
| PMP-15-R-C-1-22 |
PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable, 1m length, panda fibre, FC/APC connector both ends, slow axis align to connector key |
| PMP-15-R-C-2-11 |
PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm jacket (125/900/3mm), 2m fiber length, panda fiber, FC/UPC connector both ends, slow axis align to connector key |
| PMP-15-R-C-3-12 |
PM patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable jacket, PM1550 panda fiber, 3m fibre length, FC/UPC connector end1 and FC/APC connector end2, slow axis align to connector key |
| PMP-15-R-C-7-22 |
Polarization maintaining patchcord, 1550nm, 2.02mm narrow key connector (R type), 3mm cable jacket(250um bare panda fibre/900micron loose tube/3mm loose tube jacket), 7m fibre length, PM1550 panda fiber, FC/APC connector both ends, slow axis align to connector key |
| PMP-15-R-L-3-12 |
PM patch cord,1550nm , 2.02mm narrow key connector (R type), 900micron loose tube jacket, 1m length, panda fibre, FC/UPC end1 and FC/APC end2, slow axis align to connector key |
| PMP-64-R-3-2-P-20 |
Polarization maintaining patch cord, 1064nm, 2.02mm narrow key connector (R type), 3mm cable, 2m fibre length, 980nm panda fiber, FC/APC connector end 1 and no connector end2, slow axis of fiber align to connector key |
| PMP-64-R-L-0.5-22 |
PM patch cord, 1064nm, 2.02mm narrow key connector (R type), 900micron loose tube jacket, 1m fibre length, 980nm panda fibre, FC/APC connectors, slow axis of fibre aligned to connector key |
| PMP-98-R-C-3-11 |
Polarization maintaining patchcord, 980nm, 2.02mm narrow key connector (R type), 3mm jacket (125/900/3mm), 3m fibre length, panda fiber, FC/UPC connector both ends, slow axis align to connector key |
| PMP-98-R-C-5-20 |
PM patchcord, 980nm, 2.02mm narrow key connector (R type), 3mm cable jacket (125/900/3mm), 5m fiber length, panda fiber, FC/APC connector end1 and no connector end2, slow axis align to connector key |
| PMP-98-R-L-10-22 |
Polarization maintaining patch cord, 980nm, 2.02mm narrow key connector (R type), 900micron loose tube jacket, 10m fiber length, panda fiber, FC/APC connector both ends, slow axis align to connector key |
Frequently Asked Questions - for PM patchcords
Q1. I am looking for a 50m long PM fiber cable, bundled with three fibers and with FC/APC connectors.
Q2. I am looking for a 1550nm PM patchcord, 3m long, FC/APC connector end 1, slow axis aligned to connector key and
FC/UPC end 2, fast axis aligned to connector key.
Q3. I am looking for mating adaptors or through adaptors to inter-connect two patchcords with tight tolerance.
Q4. The web specs show that the minimum ER is 23dB. Can you supply patchcords with higher ER value?
Q5. Can you supply PM patchcords without locking the key to slow or fast axis of the fiber, needed for lab experiments?
Q6. I want to emulate a few fixed values of PMD (DGD) for our lab testing. Say approx. 5, 10, and 15ps DGD.
Can you supply 1550nm PM patchords with calibrated DGD?
Q7. Do you have panda fibre that is 900um coated, or in a cord? Something more robust than bare fibre would be preferred.

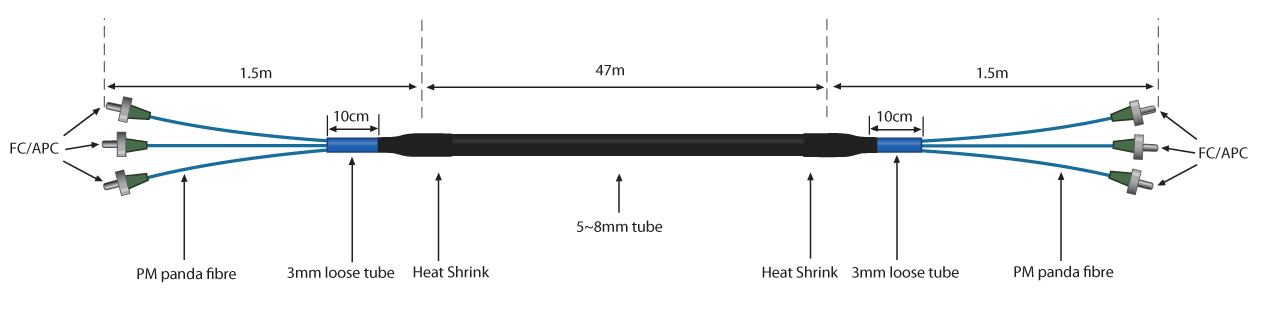

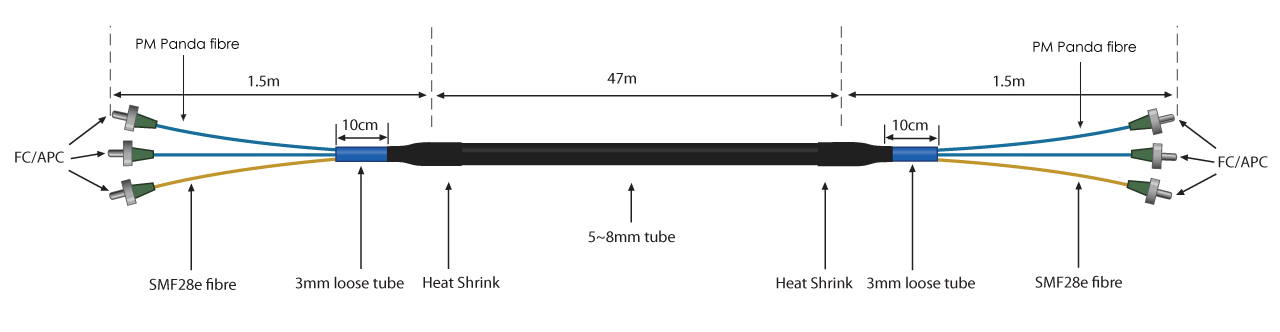

Q1. I am looking for a 50m long PM fiber cable, bundled with three fibers and with FC/APC connectors.
A. Yes, we can bundle Polarization Maintaining fibers into one cable, for lengths of up to 50m. SMF28e fiber and PM fiber can also be bundled into one cable. Please refer to the below diagrams for the structure of the cables.
Q2. I am looking for a 1550nm PM fiber jumper lead, 3m long, FC/APC connector end 1, slow axis aligned to
connector key and FC/UPC end 2, fast axis aligned to connector key.
A. Yes, we can make cables according to your specific requirements.
Please specify on your order form the part number: PMP-15-R-C-3-21-SF
Q3. I am looking for mating adaptors or through adaptors to inter-connect two patchcords with tight tolerance.
A. We stock several FC adaptors or sleeve-through adaptors suitable for FC/UPC and FC/APC patch cords/jumper leads.
Adaptors come in wide key and narrow key. Please refer to our PM adaptor list, below.
Q4. The web specs show that the minimum ER is 23dB. Can you supply patch cords with higher ER value?
A. Yes, we can supply patch cords/jumper leads with the ER over 25dB, The price will be 20% higher for these.
Q5. Can you supply PM patchcords without locking the key to slow or fast axis of the fiber, useful for lab
experiments?
A. Yes, we can supply connectors with a tuneable ferrule (360 degrees) with the key unlocked.
Please specify your requirement when ordering.
Q6. I want to emulate a few fixed values of PMD (DGD) for our lab testing.
Say approx. 5, 10, and 15ps DGD. Can you supply 1550nm PM patchords with calibrated DGD?
A. Yes, we can supply these types of patchcords, what we have is PM panda fiber, which is used for 1550nm PM
Patchcords with DGD 1.3ps/m. so the patchcord lengths will be 3.8m, 7.7m, 11.5m with +/-5cm length tolerance.
Ordering sample:
PMP-15-LT-7.7-22
PM patchcord, 1550nm, 900um tight buffered panda fiber, 7.7m +/-5cm length,
FC/APC connector both ends, slow axis align to connector key
Q7. Do you have panda fibre that is 900um coated, or in a cord? Something more robust than bare fibre would be
preferred.
A. We use 900um tubing to make patchcord lengths up to 5 metrs(250/900um). For longer lengths, 900um tight buffered panda
fiber has to be used. Generally, the price is higher for 900um tight buffered fiber.
Q1. I am looking for a 50m long PM fiber cable, bundled with three fibers and with FC/APC connectors.
Q2. I am looking for a 1550nm PM patchcord, 3m long, FC/APC connector end 1, slow axis aligned to connector key and
FC/UPC end 2, fast axis aligned to connector key.
Q3. I am looking for mating adaptors or through adaptors to inter-connect two patchcords with tight tolerance.
Q4. The web specs show that the minimum ER is 23dB. Can you supply patchcords with higher ER value?
Q5. Can you supply PM patchcords without locking the key to slow or fast axis of the fiber, needed for lab experiments?
Q6. I want to emulate a few fixed values of PMD (DGD) for our lab testing. Say approx. 5, 10, and 15ps DGD.
Can you supply 1550nm PM patchords with calibrated DGD?
Q7. Do you have panda fibre that is 900um coated, or in a cord? Something more robust than bare fibre would be preferred.

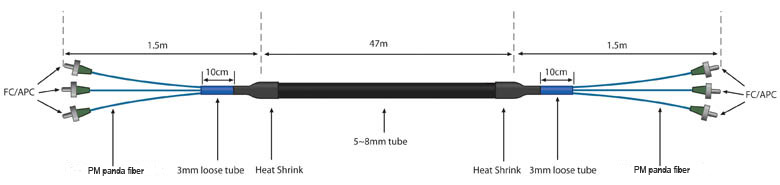

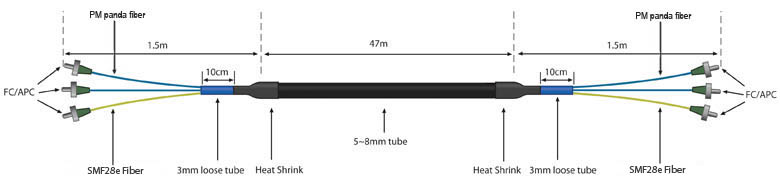

Q1. I am looking for a 50m long PM fiber cable, bundled with three fibers and with FC/APC connectors.
A. Yes, we can bundle Polarization Maintaining fibers into one cable, for lengths of up to 50m. SMF28e fiber and PM fiber can also be bundled into one cable. Please refer to the below diagrams for the structure of the cables.
Q2. I am looking for a 1550nm PM fiber jumper lead, 3m long, FC/APC connector end 1, slow axis aligned to
connector key and FC/UPC end 2, fast axis aligned to connector key.
A. Yes, we can make cables according to your specific requirements.
Please specify on your order form the part number: PMP-15-R-C-3-21-SF
Q3. I am looking for mating adaptors or through adaptors to inter-connect two patchcords with tight tolerance.
A. We stock several FC adaptors or sleeve-through adaptors suitable for FC/UPC and FC/APC patch cords/jumper leads.
Adaptors come in wide key and narrow key. Please refer to our PM adaptor list, below.
Q4. The web specs show that the minimum ER is 23dB. Can you supply patch cords with higher ER value?
A. Yes, we can supply patch cords/jumper leads with the ER over 25dB, The price will be 20% higher for these.
Q5. Can you supply PM patchcords without locking the key to slow or fast axis of the fiber, useful for lab
experiments?
A. Yes, we can supply connectors with a tuneable ferrule (360 degrees) with the key unlocked.
Please specify your requirement when ordering.
Q6. I want to emulate a few fixed values of PMD (DGD) for our lab testing.
Say approx. 5, 10, and 15ps DGD. Can you supply 1550nm PM patchords with calibrated DGD?
A. Yes, we can supply these types of patchcords, what we have is PM panda fiber, which is used for 1550nm PM
Patchcords with DGD 1.3ps/m. so the patchcord lengths will be 3.8m, 7.7m, 11.5m with +/-5cm length tolerance.
Ordering sample:
PMP-15-LT-7.7-22
PM patchcord, 1550nm, 900um tight buffered panda fiber, 7.7m +/-5cm length,
FC/APC connector both ends, slow axis align to connector key
Q7. Do you have panda fibre that is 900um coated, or in a cord? Something more robust than bare fibre would be
preferred.
A. We use 900um tubing to make patchcord lengths up to 5 metrs(250/900um). For longer lengths, 900um tight buffered panda
fiber has to be used. Generally, the price is higher for 900um tight buffered fiber.
Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors. FC connectors can be supplied with wide key (2.14mm, N type) or narrow key (2.02mm, R key) width. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable. PMP features low insertion loss, high extinction ratio and high return loss. The slow or fast axis can be aligned to the connector key.
| Polarization Maintaining PM Patch Cord 980, 1030, 1064,1310,1550 nm | ||
| Specifications | ||
| Parameters | Values | |
| Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC | |
| Wavelength | 980nm, 1030nm, 1064nm | 1310nm, 1550nm |
| Insertion loss | <0.7dB | <0.4dB |
| Optical return loss | >50dB (for UPC), >60dB (for APC) | >50dB (for UPC), >60dB (for APC) |
| Axis alignment | slow axis of fibre aligned to connector key | |
| Extinction ratio | >23dB (R key), >20dB (N key) | |
| Max. optical power | 300mw | |
| Connector key for FC type | Narrow key (R key, 2.02mm) or wide key (N key, 2.10~2.14mm) | |
| Fiber length tolerance | +/-10cm | |
| Fiber type | PM panda fiber | |
| Operation temperature | -5 to +70°C | |
| Storage temperature | -40 to +85°C | |
| Note: Specifications are subject to change without notice | ||
|
Note: AFW can also supply PM Patch cords with other wavelengths such as : 850nm, 780nm, 630nm and 430nm Please contact us by email for a quote: sales@afwtechnologies.com.au |
||
| Adaptors | ||
|
ADA-PM-22-R-S |
PM FC through adaptor, 2.03mm key way (R type), square flange, zirconia sleeves for PM patchcords |
|
|
ADA-PM-22-R-D |
PM FC through adaptor, 2.03mm key way (R type), round D type panel mount, zirconia sleeves for PM patchcords |
|
|
ADA-PM-22-N-S |
PM FC through adaptor, 2.10~2.20mm key way (N type), square flange, zirconia sleeves for PM patchcords |
|

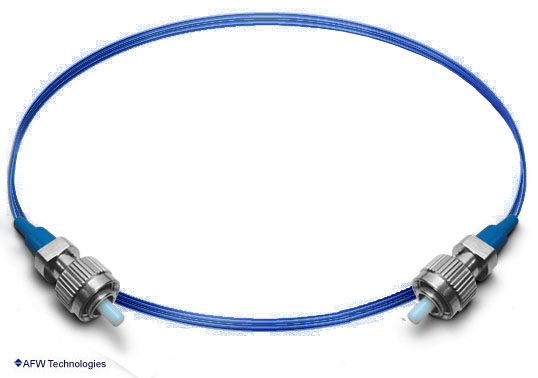

PM fiber jumper leads with polarization axis unlocked (360 degree rotation)
AFW can make Polarization Maintaining fiber patchcords or pigtails without aligning the slow axis or fast axis to the connector key. The customer can align the polarization axis with preferred alginment while turning the connector ferrule 360 degrees. These patchcords are especially used in laboratory experiments or research applications.
For PM patch cords with the polarisation axis unlocked please select
'UL' as shown in the ordering information below.
For PM patch cords with the polarisation axis unlocked please select
'UL' as shown in the ordering information below.
Polarization Maintaining (PM) Patch Cord 980, 1030, 1064,1310,1550nm

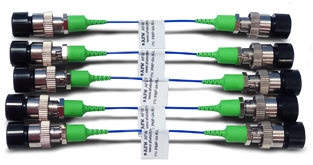

Special Length Polarization Maintaining (PM) Patch Cord - FC/UPC or FC/APC only
AFW can make Polarization Maintaining fiber patchcords with tight length tolerance. The shortest length can be 5cm with a length tolerance of +/-3mm. These patchcords are especially used in laboratory experiments or research applications. Please send us an email with your special length requirement: sales@afwtechnologies.com.au

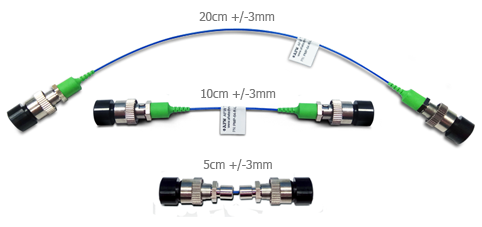

| Ordering Examples - Special Length PM Patchcords: +/-3mm Length Tolerance | |
| Part Number | Description |
| PMP-64-R-L-1-22-V1 | PM patch cord, 1064nm, 2.02mm key width (narrow key), 900um loose tube jacket, 1m +/-3mm fiber length, PM 980 panda fiber, FC/APC connector end 1 and 2, slow axis of fiber aligned to connector key, min ER 23dB |
| PMP-64-R-L-0.2-22-V1 | PM patch cord, 1064nm, 2.02mm key width (narrow key), 900um loose tube jacket, 20cm +/-3mm fiber length, PM 980 panda fiber, FC/APC connector end 1 and 2, slow axis of fiber aligned to connector key, min ER 23dB |
| PMP-64-R-L-0.1-22-V1 | PM patch cord, 1064nm, 2.02mm key width (narrow key), 900um loose tube jacket, 10cm +/-3mm fiber length, PM 980 panda fiber, FC/APC connector end 1 and 2, slow axis of fiber aligned to connector key, min ER 23dB |
| PMP-64-R-L-0.05-22-V1 | PM patch cord, 1064nm, 2.02mm key width (narrow key), 900um loose tube jacket, 5cm +/-3mm fiber length, PM 980 panda fiber, FC/APC connector end 1 and 2, slow axis of fiber aligned to connector key, min ER 23dB |
| Ordering Information | |
| PMP-SS-V-X-Y-Z1Z2-VR01 | |
| SS: Wavelength | 15 - 1550 nm, 13 - 1310 nm, 64 - 1064 nm, 30 - 1030nm, 98 - 980 nm, S - Specify |
| V: Key Width (For FC connector ) | R - 2.02 mm (>23dB ER), N - 2.14 mm (>20dB ER) |
| X : Cable type | L - 900um loose tube jacket |
| Y : Fiber length |
1 - 1m+/-3mm, 0.5 - 50cm+/-3mm, 0.3 - 30cm+/-3mm, 0.2 - 20cm +/-3mm, 0.1 - 10cm +/-3mm, 0.05 - 5cm +/-3mm, S - Specify |
| Z: Connector type end1 | 1 - FC/UPC, 2 - FC/APC |
| 1: Axis alignment end1 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
| Z: Connector type end2 | 1 - FC/UPC, 2 - FC/APC |
| 2: Axis alignment end2 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
Special Fibre patch cords: PM-S405HP, PM630HP, PM780HP, PM850
| Polarization Maintaining PM Patch Cord | ||||
| Specifications | ||||
| Parameters | Values | |||
| Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC | |||
| Wavelength | 400~500nm | 630nm | 780nm | 850nm |
| Insertion loss | 1.5dB max | 1.2dB max | 1.0dB max | 0.8dB max |
| Optical return loss | >50dB (for UPC), >60dB (for APC) | |||
| Extinction ratio | >15dB | >20dB | >20dB | >22dB |
| Fiber type | PM-S405-XP | PM630-HP | PM780-HP | PM850 |
| Axis alignment | Slow axis of fibre aligned to connector key | |||
| Max. optical power | 300mw | |||
| Connector key for FC type | Narrow key (2.02mm) | |||
| Fiber length tolerance | +/-10cm | |||
| Operation temperature | -5 to +70°C | |||
| Storage temperature | -40 to +85°C | |||
| Note: Specifications are subject to change without notice | ||||
| Ordering Information | |
| PMP-SS-V-X-Y-Z1Z2 | |
| SS: Wavelength | S - Specify |
| V: Key Width (For FC connector ) | R - 2.02 mm (>23dB ER) |
| X : Cable type | B - 250um bare fiber, L - 900um loose tube jacket, C - 3mm loose tube jacket |
| Y : Fiber length | 0.5 - 0.5m, 0.75 - 0.75 m, 1 - 1m, 5 - 5m, S - Specify |
| Z: Connector type end1 | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - None |
| 1: Axis alignment end1 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
| Z: Connector type end2 | 1 - FC/UPC, 2 - FC/APC, 3 - SC/UPC, 4 - SC/APC, 6 - LC/UPC, 7 - LC/APC, 0 - None |
| 2: Axis alignment end2 |
SA - Slow axis align to key, FA - Fast axis align to key, 45 - Slow axis aligned 45deg. to key, UL - Key unlocked |
|
Note for FC connectors: our FC connector key is narrow key (2.00~2.05mm). If you require wide key connectors please specify this on your request/order. Please note that the price will be higher for wide key connectors. |
|
AFW can make polarization maintaining patchcords with special fibre such as PM-S405HP, PM630HP, PM780HP and PM850.
